FAAC - KIT AUTOMATION ELECTROMECHANICAL WITH ARTICULATED ARMS FOR SWING GATES UP TO 1,8 MT IN DEPTH
- IRREVERSIBLE AUTOMATION
- UNTILL 1,8 MT DOESN'T NEED ELECTRICAL RELEASE, TO INCREASE LEAF DEPTH UP TO 3 MT IT NEEDS ELECTROLOCK
- MAX LEAF OPENING UP TO 120° OUTWARD
- EQUIPPED WITH AN ANTI-CRUSH SYSTEM
- THE CONTROL UNIT MANAGES: SLOWDOWNS IN OPENING/CLOSING, SPEED AND FORCE
- MANUAL RELEASE DEVICE THAT CAN BE USED FROM INSIDE THE PROPERTY OR FROM OUTSIDE USING A SPECIFIC DEVICE
ALIMENTATION: 24V DC
MAGNUM KIT PLUS
105660146
24V DC

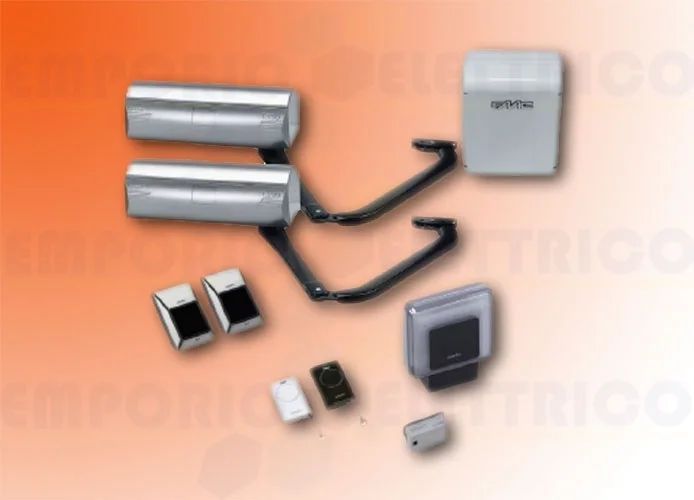

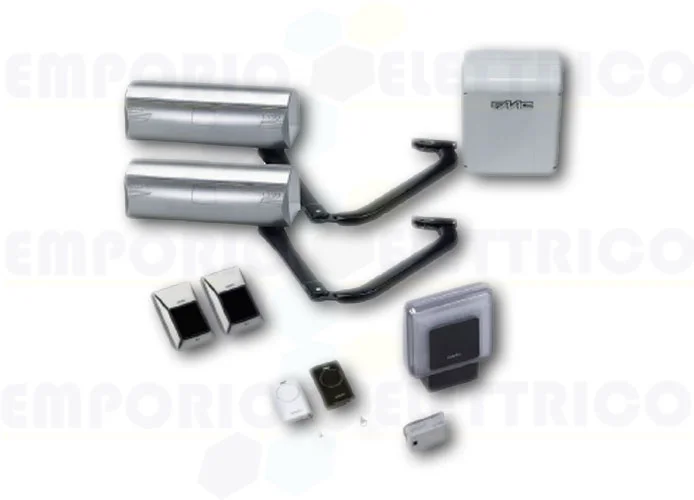

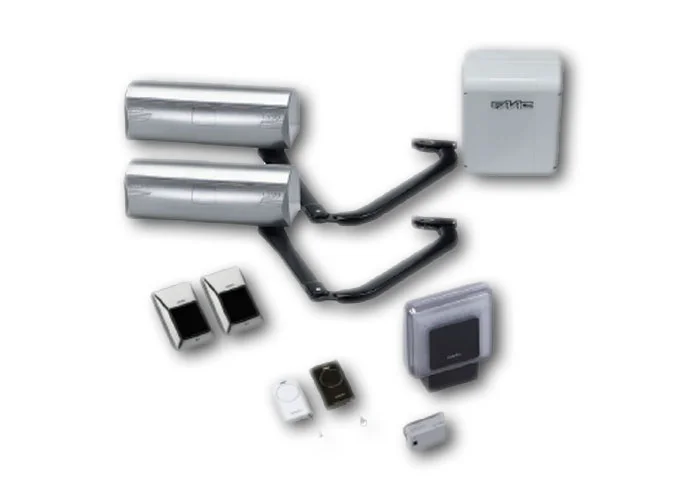

IT INCLUDES:
- 2 104573: Electromechanical gearmotor with articulated arm (not included) for swing gates, for residential use, with leaf up to 1,8 m
- 2 738705: Articuleted arms (for motors 390)
- 1 102011: Electronic board + container e034
- 1 787832 (ex 319007): Receiver omnidec 868 MHz xf 868
- 2 787031: Remote control 4-channel 868MHz xto4
- 1 410029: Led flashing light 230V/115V/24V Xled
- 1 785122: Pair of external photocells bus XP30B inox
- 1 "Automatico FAAC" sign
