FAAC - KIT AUTOMATION FOR SWING DOORS WITH LEAF UP TO 2,5 MT IN LENGHT AND 500 KG IN WEIGHT.
- SUITABLE FOR DOMESTIC OR SMALL TERTIARY USE
- THE WEIGHT OF THE GATE RESTS ON THE SELF-SUPPORTING UNDERGROUND BOX, GUARANTEEING A LONG LASTING LIFE MOTOR (THE BOX NOT SUPPLIED IN THE KIT CAN THEREFORE BE INSTALLED IN ADVANCE, SO ADD 1 BOX PER GATE LEAF).
- THE CONTROL UNIT AUTOMATICALLY MANAGES MOTION AND DECELERATION DURING OPENING/CLOSING AND OFFERS VARIOUS SPEED AND FORCE CHOICES.
- POSSIBILITY TO CONNECT AN ELECTRIC LOCK.
- THE AUTOMATION IS EQUIPPED WITH AN ANTI-CRUSHING SAFETY DEVICE IN COMPLIANCE WITH EUROPEAN STANDARDS.
- IT IS ESSENTIAL TO INSERT THE OPENING STOPS IN THE 24V AND 230V KITS (ADD 1 STOP PER BOX).
- IN THE EVENT OF A POWER FAILURE, THE KEY RELEASE SYSTEM, ACCESSIBLE FROM INSIDE OR OUTSIDE, ALLOWS THE GATE TO BE OPERATED MANUALLY.
770N 24V 106745
24V DC

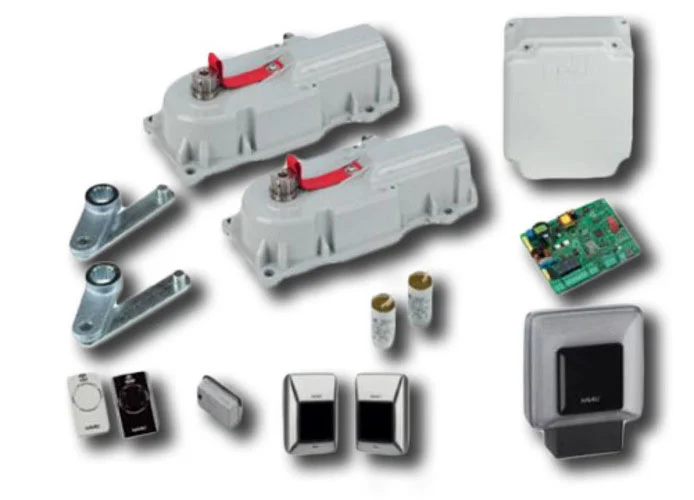

INCLUDE:
- 2 GEARMOTORS 770N 24V DC 10675301
- 2 ENCODER GROUP FOR 770N 404035
- 1 SCHEDA ELETTRONICA E024S CON CONTENITORE 790286
- 1 RECEIVER XF 868 787832 (EX 319007)
- 1 FLASHING LIGHT XLED 230- 115- 24V 410029
- 1 REMOTE CONTROL 4-CHANNEL XT4 SLHXT4 SLH 868 MHZ WHITE (787010)
- 1 REMOTE CONTROL 4-CHANNEL XT4 SLHXT4 SLH 868 MHZ BLACK (7870101)
- 1 PAIR STAINLESS STEEL WALL-MOUNTED PHOTOCELLS XP30B (7851061)
- 1 "AUTOMATICO FAAC" SIGN
