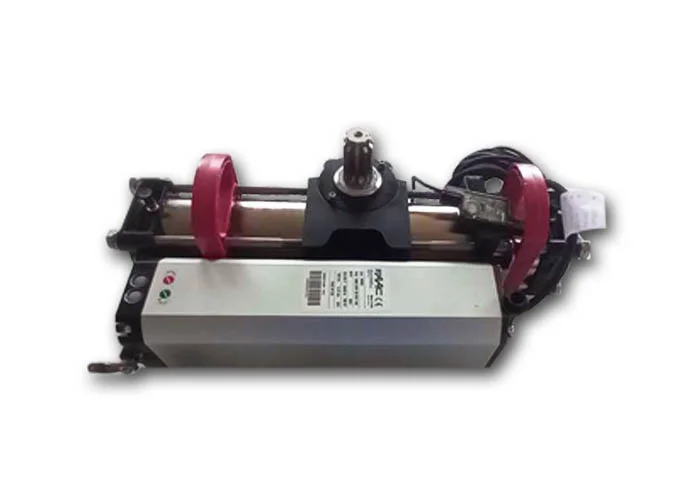

FAAC - UNDERGROUND OIL-HYDRAULIC GEARMOTOR FOR SWING DOORS FOR RESIDENTIAL USE, UP TO 4 M PER LEAF AND 800 KG OF WEIGHT
- SUITABLE FOR RESIDENTIAL AND CONDOMINIUM USE
- OPENING 180°, NEW MODEL WITH ENCODER
- WITHOUT HYDRAULIC LOCK ON OPENING/CLOSING PHASES
- UNDERGROUND OPERATOR WITH 230V HYDRAULIC TECHNOLOGY
- ABSOLUTE MAGNETIC ENCODER WITH INTEGRATED 2easy BUS (CONNECTION TO 2 POLARISED CABLES)
- INTEGRATED POSITIVE STOPS, POSSIBILITY OF AVOIDING THE INSTALLATION OF MECHANICAL STOPS (FAAC PATENT)
S800 ENC SBW 180° 108803
230V AC
Complementary accessories (not included):
- foundation box 490112
- stainless steel foundation box 490113
- release lock with customised key from n.1 to n.36 71209101/36
- XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
- hydraulic release device (to be used with the code 390972) for operators CBAC or SBW 390035
- splined joint group kit (to be used with 390035) for CBAC or SBW operators 390972
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. E for electronic boards 720119
- S800 welded shoe kit (welding according to UNI EN ISO 15614-1) 490187
