faac oil-hydraulic gearmotor 402 sbs 230v ac 104474

SKU: 104474

£679.00  £407.40VAT INCLUDED

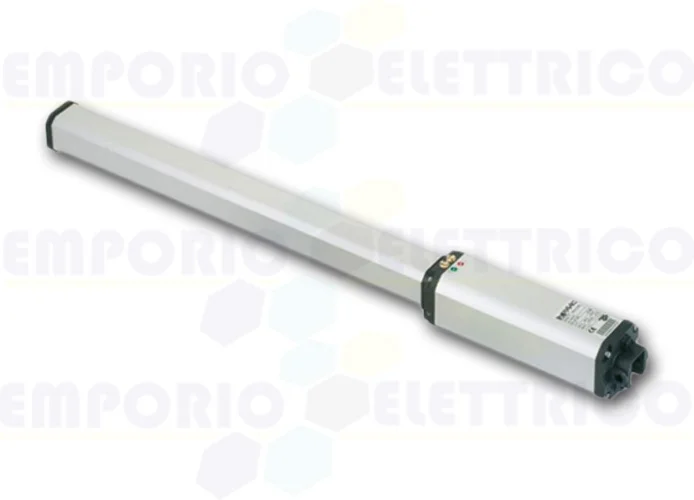

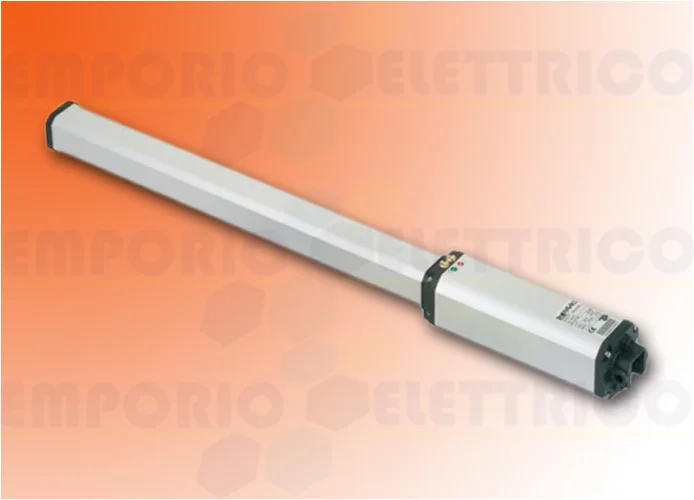

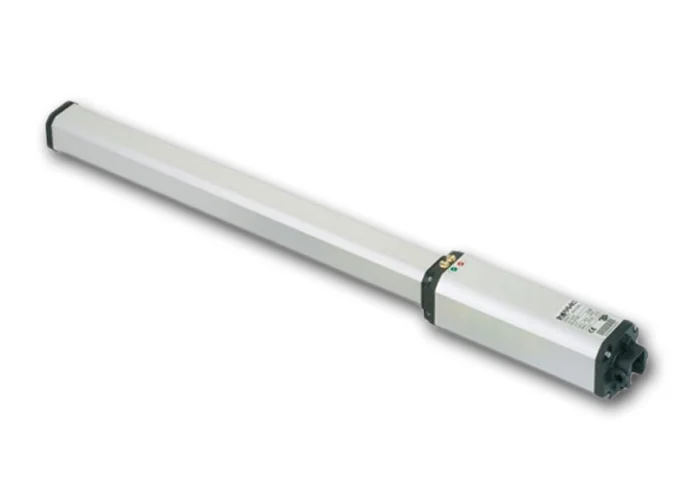

FAAC - OIL-HYDRAULIC GEARMOTOR FOR SWIN GATES FOR RESIDENTIAL USE, LEAF UP TO 3M

- SUITABLE FOR RESIDENTIAL USE
- SMALL FOOTPRINT IDEAL FOR INSTALLATION IN SMALL SPACES
- HIGH RESISTANCE TO ATMOSPHERIC CORROSION



ACTUATOR 402 SBS
104474

230V AC


TECHNICAL DETAILS:
- POWER SUPPLY: 220-240V~ 50/60 Hz
- ELECTRIC MOTOR: ASYNCHRONOUS SINGLE-PHASE
- MAX POWER: 220 W
- MAX THRUST: 6900 N (*)
- MAX SPEED ROD: 10 MM/S (*)
- MOTOR-PUMP UNIT: 0,75 LPM (*)
- ROD STROKE: 250 MM
- MAX OPENING ANGLE LEAF: 110°
- OPERATING TEMPERATURE: -20°C ÷ + 55°
- THERMOPROTECTION: 120°C
- DEGREE OF PROTECTION: IP55
- USE FREQUENCY: 55 CYCLES/HOUR
- MAX LEAF WIDTH: 3 M (WITH ELECTRIC LOCK)
- OIL TYPE: FAAC HP OIL
- SIZES (LXPXH): 959 X 85 X 85
- ELECTRONIC EQUIPMENT: NOT INCLUDED


Complementary accessories (not included):
-  electronic board E045S 790077 (EX 790005)
-  electronic board E145S 790076 (EX 790006)
-  container mod. E for electronic boards 720119
-  wall plate 737604
-  additional unlocking key 713002
- SAFEcoder magnetic absolute encoder BUS (FAAC patented) 404040
-  fittings for conduits RTA 710010
-  XIB BUS interface (if using E045 electronic board with ftc no bus) 790062



  • Brand: FAAC
