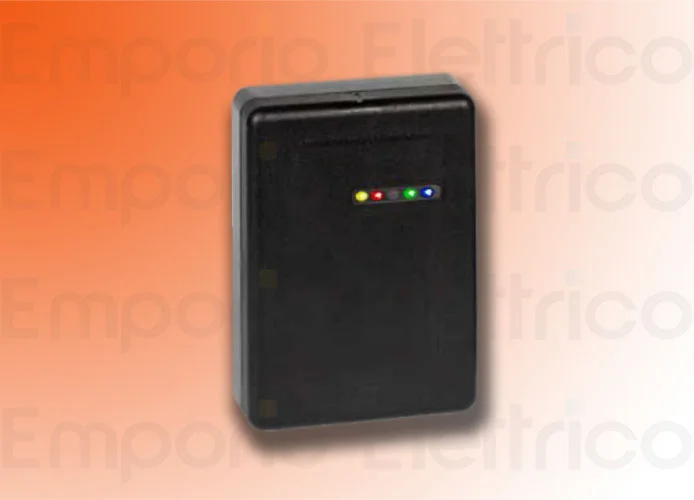

FAAC - FEIG R-LOOP RADAR SCANNER SENSOR
THE FEIG R-LOOP RADAR SENSOR IS DESIGNED TO REVOLUTIONISE THE DETECTION OF VEHICLES AND PEDESTRIANS IN ACCESS CONTROL SYSTEMS AND AUTOMATIC BARRIERS. THANKS TO MILLIMETRE-WAVE RADAR TECHNOLOGY, IT OFFERS A VALID ALTERNATIVE TO TRADITIONAL INDUCTIVE LOOPS AND PHOTOCELLS, ELIMINATING THE NEED FOR INVASIVE WORK ON THE ROAD SURFACE.
- ACCURATE DETECTION OF VEHICLES AND PEOPLE, WITH HIGH RELIABILITY IN ANY OPERATIONAL CONTEXT
- DISTINCTION BETWEEN STATIONARY AND MOVING OBJECTS, FOR INTELLIGENT MANAGEMENT OF TRIGGER LOGIC
- BUILT-IN SAFETY FUNCTION TO PREVENT ACCIDENTAL CLOSURE OF THE BARRIER, ACCORDING TO STANDARD EN 12453 (LEVEL D)
- QUICK INSTALLATION WITHOUT CIVIL WORKS OR CUTTING INTO THE ASPHALT, SIGNIFICANTLY REDUCING INSTALLATION TIME AND COSTS
- ADVANCED CONFIGURATION AND CUSTOMISATION OF DETECTION ZONES VIA A DEDICATED APP, IN A SIMPLE AND INTUITIVE MANNER
- RELIABLE DETECTION EVEN IN HOSTILE ENVIRONMENTAL CONDITIONS (RAIN, FOG, SNOW)
- COMPATIBILITY WITH DOOR OPENING, ACCESS CONTROL AND TICKETING SYSTEMS
- COMPACT AND ROBUST DESIGN WITH IP65 RATING, SUITABLE EVEN FOR EXTREME OUTDOOR ENVIRONMENTS
Technical Specifications:
-Technology Millimetre radar for object detection

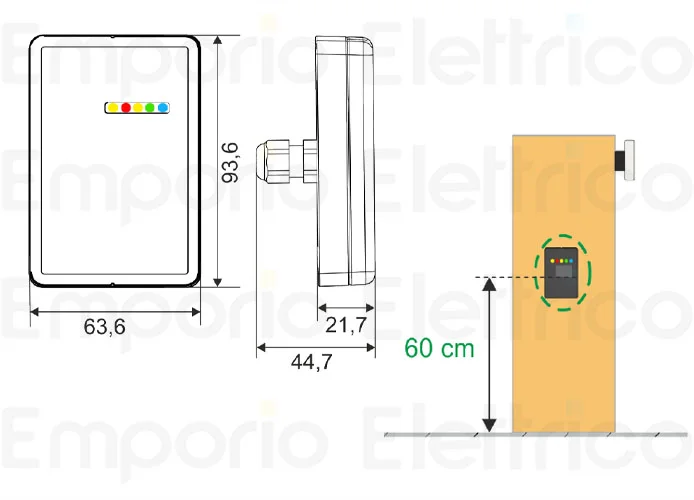

-Recommended installation height: 0.30–0.70 m above ground level (EN 12453, Level D)
-Maximum detection range: up to 8.0 × 8.0 m (detects people up to ~6.0 m away)
-Power supply 9 – 30 VDC
-Maximum consumption ≤ 1,8 W
-Exits 3 galvanically isolated solid-state relays
-Protection IP65
-Operating Temperature -30 °c / +55 °c
-Material / Dimensions PC / aluminium, 63,6 × 93,6 × 21,7 mm
-Configuration Interface Bluetooth® / dedicated app
-Compliance EN 12453 Level D protection
- Weight approx. 300 g, including connection cable
RADAR SCANNER SENSOR FEIG R-LOOP
1050147
