FAAC - AUTOMATIC BOLLARD FOR RESIDENTIAL AREAS 230W.
- HEIGHT 600MM
- EASE OF TRANSPORT, STORAGE AND INSTALLATION
- IT DOES NOT REQUIRE THE LAYING OF A MANHOLE
- HYDRAULIC ACTUATOR
- RESIDENTIAL USE
THE PRODUCT IS EQUIPPED WITH:
- 6 MM THICK STEEL CYLINDER WITH SATIN-FINISH TREATMENT
- STAINLESS STEEL AISI 316L SATIN FINISH
- HYDRAULIC LOCK IN HIGH POSITION WITH SPECIAL RELEASE KEY SUPPLIED
- SUPPORT STRUCTURE TO BE CEMENTED WITH CATAPHORESIS TREATMENT.
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.

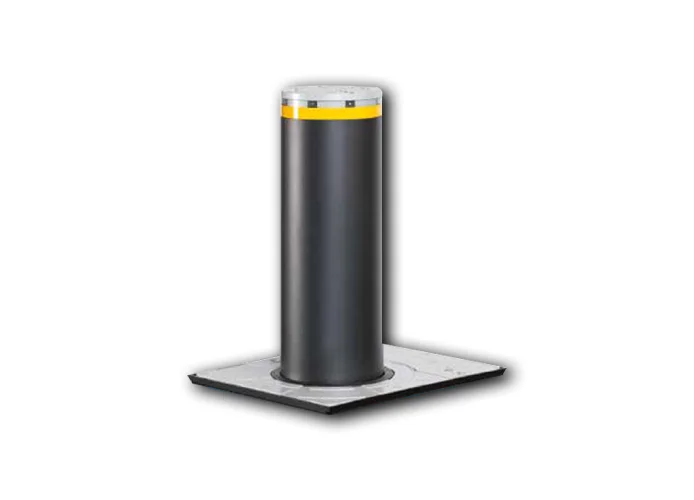

FAAC J200 HA H600 INOX
116505
| Actuator type | Hydraulic actuator |
| Cylinder height above ground | 600 mm |
| Cylinder diameter | 200 mm |
| Cylinder treatment type | AISI 316L satin-finished 6 mm thick | |
| Reflective band height | 25 mm |
| Standard reflective band colour | Orange |
| Climbing time | ~5 s (*) |
| Descent time | ~7 s (*) |
| Emergency lowering device | YES (excludable) |
| Emergency descent time | ~7 s (*) |
| Lifting obstacle detection | YES (excludable) |
| Unlocking device | YES |
| Mains supply voltage | 220-240V ~ 50/60Hz |
| Maximum power | 230 W (*) |
| Hydraulic unit degree of protection | IP67 |
| Type of use | Residential use |
| Ambient operating temperature | -15 °C / +55 °C |
| Ambient operating temperature with heater | -25 °C / +55 °C |
| Load class (EN 124) | C250 (25t) |
| Total weight | 99 Kg |
