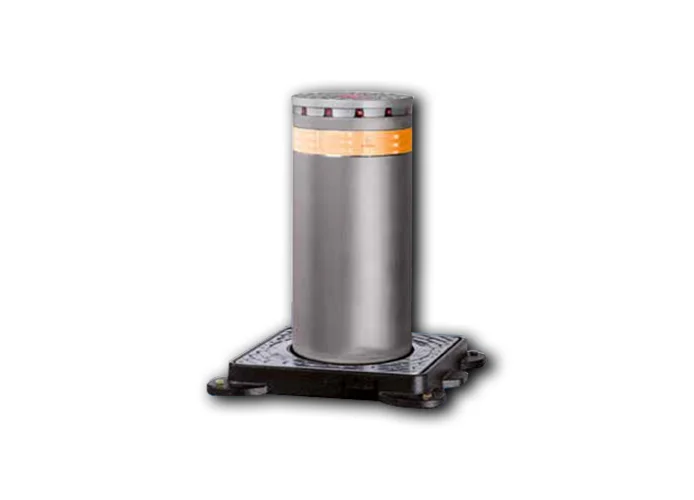

FAAC - AUTOMATIC BOLLARD FOR COMMERCIAL AND INDUSTRIAL AREAS AND CITY GATES.
THIS RETRACTABLE BOLLARD J275 HA V2 IS RECOMMENDED FOR ALL AREAS WHERE MANY TRANSITS ARE EXPECTED PER DAY
- HEIGHT 800MM
- GUARANTEED FOR HIGH FREQUENCIES OF USE
- FULL OPTIONAL PRODUCT, SUPPLIED ALREADY EQUIPPED WITH THE MAIN ACCESSORIES
- HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
- PERFECT INTERCHANGEABILITY WITH FIRST-GENERATION BOLLARDS
- GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH
THE PRODUCT IS EQUIPPED WITH:
- 6 MM THICK AISI 316L STAINLESS STEEL CYLINDER WITH SATIN FINISH
- CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
- EMERGENCY LOWERING IN CASE OF POWER CUT
- RELEASE KEY FOR MANUAL EMERGENCY LOWERING
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J275 HA V2 H800
116037
| Actuator type | Hydraulic actuator |
| Cylinder height above ground | 800 mm |
| Cylinder diameter | 275 mm |
| Cylinder treatment type | Satin-finishing - Aisi 316L |
| Climbing time | ~5 s (*) |
| Descent time | ~3,5 s (*) |
| Emergency lowering device | YES (excludable) |
| Emergency lowering time | ~1,2 s (*) |
| Lifting obstacle detection | YES |
| Release device | YES |
| Slowing down | YES |
| Mains supply voltage | 220-240V ~ 50/60Hz |
| Maximum power | 575 W (*) |
| Hydraulic unit degree of protection | IP67 |
| Type of use | Intensive use (Traffic) |
| | 38.000 J |
| Breaking resistance | 128.000 J |
| Cockpit weight | 55 Kg |
| Bollard weight | 133 Kg |
| Load class (EN 124) | C250 (25t) |
| Ambient operating temperature | -15 °C / +55 °C |
| Ambient operating temperature with heater | -25 °C / +55 °C |
