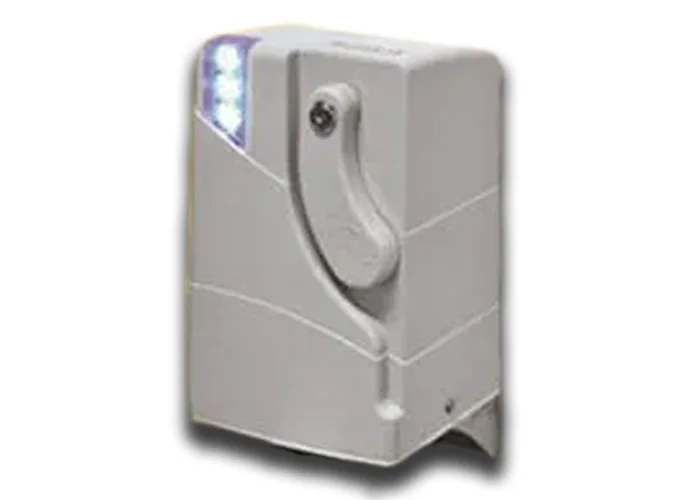

FADINI - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR FOR OUTDOOR MOUNTING FOR HINGED DOORS, WITH LEAF WEIGHT OF UP TO 300 Kg AND LENGTH OF 1,8 Mt
- SUITABLE FOR RESIDENTIAL, INTENSIVE USE
- SLAVE CONFIGURATION
- EQUIPPED WITH ANTI-CRUSHING SYSTEM WITH ENCODER ACTION
- CONSTANT AMPEROMETRIC MONITORING TO GUARANTEE THE CORRECT OPERATION OF THE ACTUATOR, DETECTING ANY OBSTACLES AND REVERSING THE GEAR
- INTEGRATED ELPRO 35S CONTROL UNIT
- EQUIPPED WITH FIXING PLATE, 2 CAMS AND 3 LIMIT SWITCH MICROS, MECHANICAL STOP ON OPENING AND TWO KEYS FOR THE RELEASE HANDLE
INTEGRATED SIGNALLING LED
BART 350 SLAVE 352L
24V DC
TECHNICAL DETAILS
- POWER SUPPLY (VAC - HZ) 230 - 50
- MOTOR VOLTAGE (VDC) 24
- POWER CONSUMPTION (W) 150
- ABSORBED CURRENT (A) 5
- MAXIMUM TORQUE (NM) 180
- OPENING-CLOSING TIME (S) 16 (95°)
- OPERATING TEMPERATURE (°C) -20 ÷ +50
- DEGREE OF PROTECTION IP 53
- TYPE OF LUBRICATION GREASE
- WEIGHT (KG) 10
- FREQUENCY OF USE INTENSIVE USE
