FADINI - ELECTRONIC CARD FOR ELPRO 7 RP SWING GATES

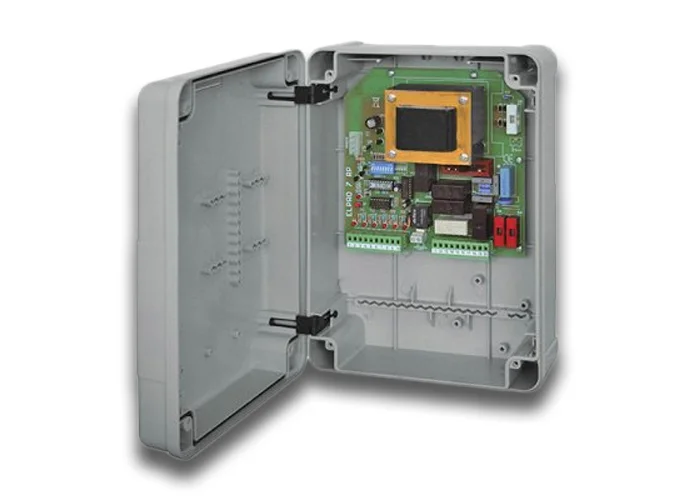

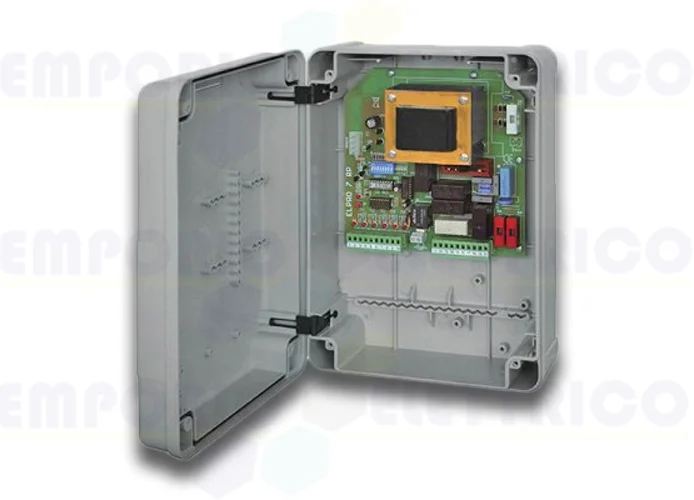

ELECTRONIC BOARD FOR NUPI 66, COMPLETE WITH OUTDOOR CONTAINER
(THE PICTURE IS INDICATIVE AND COULD BE DIFFERENT FROM THE REAL PRODUCT)
ELPRO 7 RP 6610L
230 V AC
TECHNICAL DETAILS
Single-phase board power supply: 230 V ±10% 50 Hz
Max motor power: 500 W
Photocells/selector/receiver radio output: 24 Vac
Signal light output: 24 V - 3 W max
Flashing output: 230 V - 25 W max
Working cycle: 20 s circa
Pause time: automatic 15 s, max. 90 s
Door closing delay time: 6 s
Box dimensions: 210 x 295 x 110 mm
Degree of protection: IP 64
Operating temperature: -20 °C +55 °C
