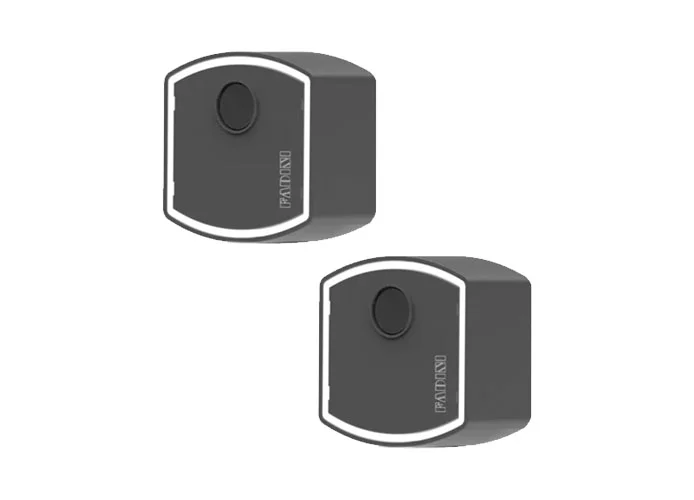

FADINI - PAIR OF WALL-MOUNTED PHOTOCELLS, RANGE 20 MT
- LED LIGHTING FRAME
- ABS BODY WITH HIGH RESISTANCE TO WEATHERING
- RELAY OUTPUT FOR CONNECTION TO ANY ELPRO SERIES CONTROL PROGRAMMER OR TO AN EXISTING SYSTEM.
PAIR OF WALL-MOUNTED PHOTOCELLS
140L ZERO.PH
FREQUENCY MODULATED LIGHT (Hz): 625/320
SUPPLY TENSION (Vac/dc): 12/24
MAX. TRANSMITTER ABSORPTION (mA): 26
MAX. RECEIVER ABSORPTION (mA): 36
WORKING TEMPERATURE (°C): -20 ÷ +70
OUTPUT CONTACT (Vdc, A/Vac, A): 30, 1/125, 0,3
RANGE (m): 20
CONTACT RELIEF TIME (ms): 6
DEGREE OF PROTECTION IP: 55.
