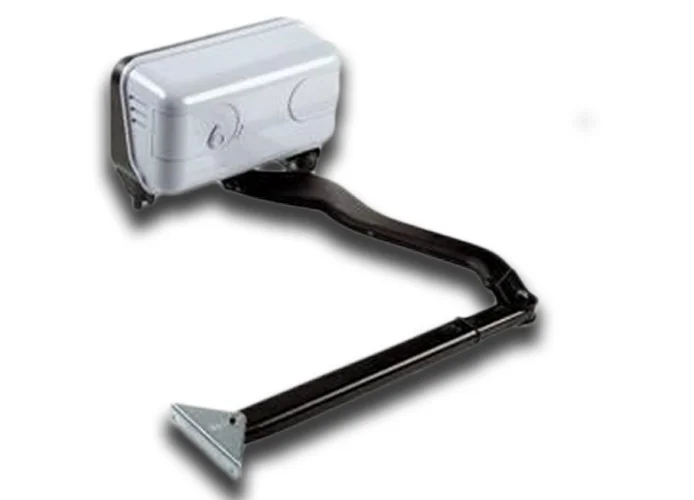

FADINI - OUTDOOR RIGHT-HAND HYDRAULIC AUTOMATION FOR SWING GATES WITH LARGE PILLARS
- EQUIPPED WITH BIDIRECTIONAL HYDRAULIC BLOCK
- ANTI-SHEARING ELBOW ARM INCLUDED
- ANTI-CRUSHING SAFETY GUARANTEED BY THE BY-PASS VALVES ON THE ACTUATOR
- UNLOCKING ACCESS WITH KEY
- INCLUDING COVER, FIXING BRACKET, 2 CODED RELEASE KEYS
- FOR WINDOWS OVER 2 m IT IS NECESSARY TO USE THE ELECTRONIC WASHER 7098L (VERTICAL) OR 7099L (HORIZONTAL)
RIGHT-HAND ELBOW ARM (299DXL) INCLUDED
- MAX LEAF LENGTH 3 Mt
- MAX LEAF WEIGHT 400 kg
APROLI 280/700 ROBUSTO RIGHT-HAND SIDE
298DXL
230V AC
TECHNICAL DETAILS
- POWER SUPPLY (VAC - HZ) 230 - 50
- ABSORBED POWER (W) 250
- ABSORBED CURRENT (A) 1.2
- OUTPUT POWER (KW / HP) 0.18 / 0.25
- WORKING TORQUE (NM) 250-400
- 130° SHAFT ROTATION
- OPENING TIME (S) 23
- OPERATING TEMPERATURE (°C) -20 ÷ +80 [F].
- DEGREE OF PROTECTION IP 67
- OIL TYPE 708L
- WEIGHT WITH ONE ARM (KG) 19
