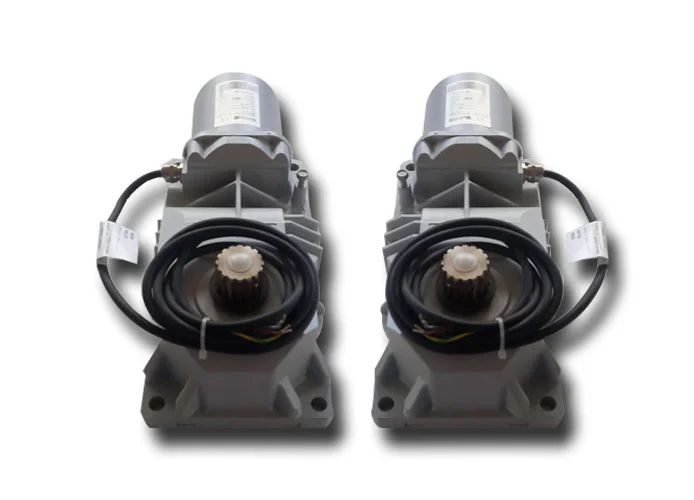

GENIUS - KIT x 2 UNDERGROUND ELECTROMECHANICAL GEARMOTOR FOR SWING GATES FOR RESIDENTIAL APPLICATION, UP TO 3,5 M AND 500 KG OF WEIGHT
- G-WAY SYSTEM (WITH BRAIN19 BOARD)
- SECURITY PROCODER (WITH BRAIN19 BOARD)
- THREE-STAGE MECHANICAL REDUCTION WITH STEEL WORM GEAR AND SINTERED SLOW SHAFT SPROCKET
- OPENING AND CLOSING SLOWDOWNS IN BOTH VERSIONS
- MOTOR WITH DOUBLE COATING
- 180° OPENING KIT
- OPTIONAL MECHANICAL STOP STOPS ON OPENING AND CLOSING
2 x ROLLER 6170077
230V AC
TECHNICAL DETAILS:
POWER SUPPLY (V): 230
ELECTRIC MOTOR (V): 230
NOMINAL POWER (W): 380
CURRENT (A): 1.7
CAPACITATOR (ΜF): 12,5
MAX. TORQUE. (NM): 330
ANGULAR SPEED (°/SEC): 6
LEAF OPENING TIME AT 90° (SEC.)¹: 18 (110°/180°)-10.5 (140°)
OPERATING FREQUENCY AT 20°C: S3 - 30%.
OPERATING TEMPERATURE (°C) -20 +55
DEGREE OF PROTECTION: IP67
WEIGHT (KG): 26.5
Complementary accessories (not included):
- steel foundation box 58P0050
- stainless steel foundation box 58P0052
- release device for 110 degree opening 6100286
- 140 degree opening kit 6100317
- 180 degree opening kit 6100318
- absolute encoder unit 6100332 ( only with BRAIN 17 board )
- mechanical stop on opening, for 110 and 140 degrees levers 58P0047
- mechanical stop on closing, for 110 and 140 degree levers 58P0048
- adapter for mounting in existing foundation boxes 58P1573
