genius automatic barrier rainbow 524 c 24v 6130034

SKU: 6130034

£2,147.00  £1,009.09VAT INCLUDED
Add to Cart | Add to Wishlist

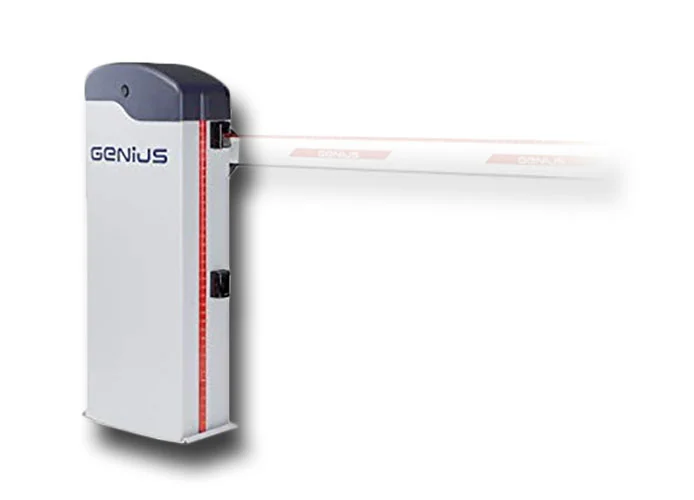

GENIUS IRREVERSIBLE AUTOMATIC BARRIER WITH ENCODER AND LYNX 07 INTEGRATED
BAR UP TO 5m (NOT INCLUDED)
AUTOMATIC ROD BALANCING BY MEANS OF 1 OR 2 SPRINGS OF YOUR CHOICE
LUMINOUS WARNING BEACON FOR BARRIER HOUSING
ERGONOMICALLY POSITIONED AND EASILY ACCESSIBLE CONTROL PANEL
EQUIPPED WITH ENCODER FOR OBSTACLE DETECTION
USER-FRIENDLY ROTARY RELEASE WITH CUSTOMISED KEY
CERTIFIED FOR CONTINUOUS USE FOR MORE THAN 1.000.000 OPERATIONS
ACCESSORIES NOT INCLUDED
ROD AND FOUNDATION PLATE NOT INCLUDED


RAINBOW 524 C      6130034
24V
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230/115
- ELECTRIC MOTOR (V): 24
- MAXIMUM STARTING POWER (W): 280
- RATED MOTOR POWER (W): 160
- MAX. TORQUE AT 24VDC (NM): 140
- NOMINAL OPERATING TORQUE (NM): 75
- NOMINAL OPEN/CLOSE TIME (SEC):¹ 4 TO 8
- OPERATING FREQUENCY AT 20°C: 70%.
- OPERATING TEMPERATURE (°C): -20 +55
- NOISE (DBA): >70
- DEGREE OF PROTECTION: IP54
- OPERATOR WEIGHT (KG): 66

Complementary accessories (not included):
- 6100294: Foundation plate
- 6100201: Kit of 6 GENIUS logo stickers

  • Brand: GENIUS

Compute Shipping Cost for this item

  • Shipping Fee £250.00

  • Each Additional item £75.00
