genius automation kit blizzard 500 enc 433 MHz 230v 104014

SKU: 104014

£468.00  £336.96VAT INCLUDED

GENIUS - KIT FOR SLIDING GATES WEIGHING UP TO 500kg, EQUIPPED WITH ACCESSORIES

- IRREVERSIBLE GEARMOTOR EQUIPPED WITH MAGNETIC LIMIT SWITCHES
- ELECTRONIC BOARD WITH TRANSPARENT PLASTIC PROTECTION HOUSING AND EXTERNAL PROGRAMMING BUTTONS
- WIDE SELECTION OF OPERATING LOGICS AND PARAMETERS
- COMPACT DIMENSIONS
- LARGE INTERIOR SPACE FOR CABLING AND FLEXIBLE HEIGHT AND DEPTH ADJUSTMENT
- FREQUENCY 433 MHz - RC


KIT BLIZZARD ENC 500
104014
230V AC

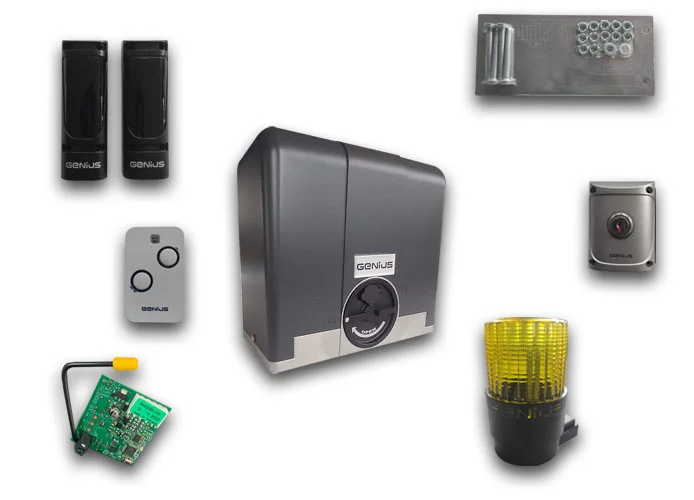

IT INCLUDES:
-  1 61100821: Electromechanical operator blizzard ENC 500 (with sprint 382 control board and integrated encoder lock-protected release)
-  1 737000: Foundation plate for blizzard
-  1 6100334: 4-channel transmitter echo tx4 rc 433 mhz
-  1 6100147: Vega bus photocells
-  1 JA31101: Quick 1 key-operated selector
-  1 6100315: Guard 230v led flashing lamp
-  1 6100354: 433 MHz single-channel receiver
-  1 Warning sign

TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 230
- NOMINAL POWER (W) 360
- THERMAL PROTECTION (°C) 140 (SELF-RESETTING)
- CAPACITOR (ΜF) 10
- MAX. THRUST (N) 390
- PINION TYPE Z16 MOD.4
- LEAF SPEED (M/MIN) 12
- OPERATING FREQUENCY AT 20° S3 - 40%
- OPERATING TEMPERATURE (°C) -20 +55
- DEGREE OF PROTECTION IP44

  • Brand: GENIUS
