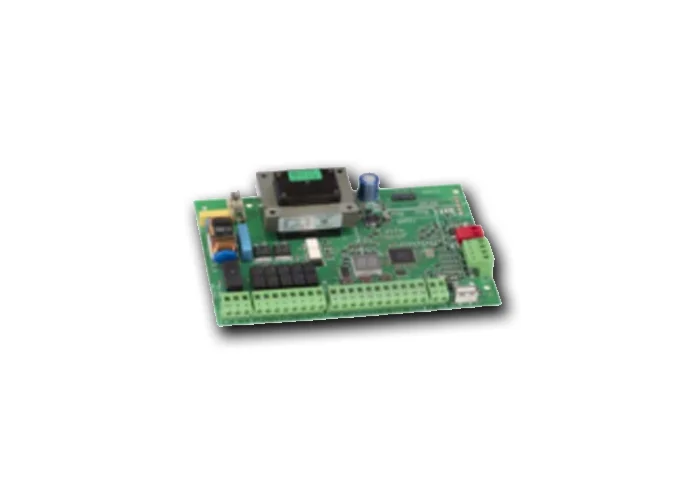

GENIUS - BRAIN19 CONTROL UNIT 230V FOR SWING GATES
THE RECEIVER IS NOT INCLUDED WITH THE BOARD
BRAIN19
6100328 (EX 6100304)
230V AC
ORIGINAL FAAC GENIUS BRAIN 19 CONTROL UNIT COD. 6100328. NEW MODEL TO REPLACE THE BRAIN 17 MODEL.
REPLACEMENT ELECTRONIC BOARD FOR GENIUS G-BAT, SIROCCO, MISTRAL, ROLLER AND TRIGON 02 AUTOMATIONS.
ADJUSTABLE VIA DISPLAY, EQUIPPED WITH 3-PIN CONNECTOR FOR RQFZ QUICK-CONNECT RECEIVERS, USB PORT FOR RADIO CODE DOWNLOAD/UPLOAD AND FIRMWARE UPDATE AND 12VAC OUTPUT FOR ELECTRIC LOCK MANAGEMENT.
POSSIBILITY OF ENCODER MANAGEMENT AND THRUST FORCE ADJUSTMENT VIA DISPLAY ON 50 LEVELS FOR EACH MOTOR.
TECHNICAL DETAILS:
POWER SUPPLY VOLTAGE: 230VAC
MAX. MOTOR LOAD: 800 W
MAX. ACCESSORY LOAD: 500 MA
ACCESSORY POWER SUPPLY: 24 VDC
MAX. ELECTRIC LOCK LOAD: 15 VA
OPERATING TEMEPRATURE -20°C +55°C
