genius breeze automation kit 230v ac 51200091

SKU: 51200091

£512.00  £368.64VAT INCLUDED

GENIUS - COMPLETE AUTOMATION KIT FOR BALANCED UP-AND-OVER GARAGE DOORS UP TO 3,30 H x 3,00 L PER DOOR

- IRREVERSIBLE SLOW GEARED MOTOR, GEO 07 ELECTRONIC BOARD IS INTEGRATED
- SUITABLE FOR RESIDENTIAL USE
- ELECTRIC LIMIT SWITCHES, COURTESY LIGHT AND ENCODER INTEGRATED IN THE MOTOR
- INTEGRATED AUTOMATION CONTROL BUTTON
- FREQUENCY 433 Mhz - RC


- OPTIONAL ACCESSORIES TO COMPLETE THE AUTOMATION (NOT INCLUDED)
- 738709: PAIR OF RIGHT TELESCOPIC ARMS 738709 (EX GENIUS 58P0387)
- 58P0380: TRANSMISSION TUBES FOR EURO BREEZE 06 58P0380

KIT EURO BREEZE     51200091
433MHz             230V AC

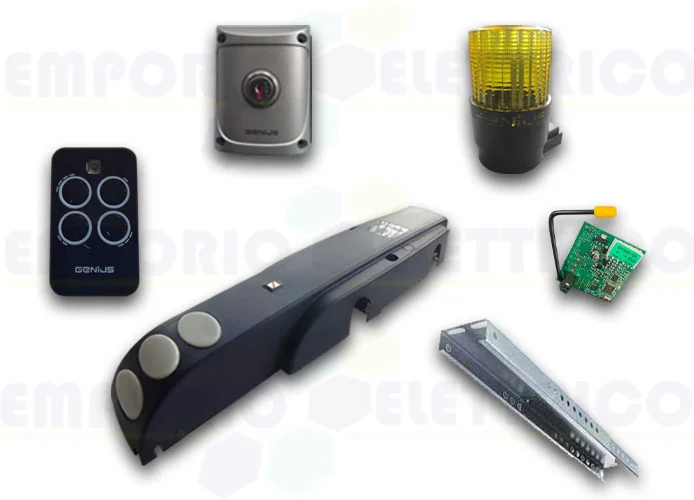

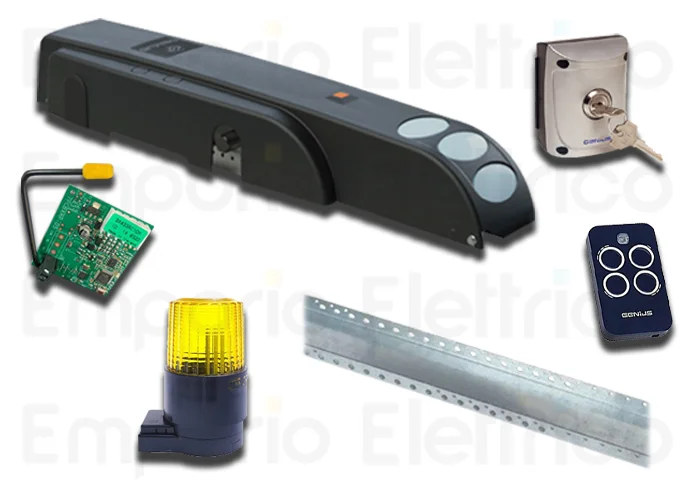

IT INCLUDES:
-  1 6120038: Euro Breeze 06 C electromechanical operator, complete with limit switch and encoder, integrated Geo 07 control board 6120038
-  1 6100354: 1-channel radio receiver 433 rolling code rc 6100354 (ex 6100110)
-  1 6100334: 4-channel remote control 433mhz rc echo tx4 6100334
-  1 JA31101-15: Outdoor key-operated selector 1 contact quick 1 JA31101-15
-  1 6100315: Guard led flashing light 230v 6100315
-  1 00058P0583: Load-bearing perforated cross-beam, 1300 mm of lenght 00058P0583
-  1 Gate plate

MOTOR TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 230
- POWER (W) 300
- CURRENT (A) 1.2
- THERMAL PROTECTION (°C) 140
- CAPACITOR (ΜF) 8
- MAXIMUM TORQUE (NM) 250
- ANGULAR SPEED (°/SEC) 8
- OPENING TIME AT 90° (SEC)¹ 22
- OPERATING FREQUENCY AT 20°C S3 - 30%
- APPROXIMATE CYCLES/HOUR AT 20°C ≥24
- OPERATING TEMPERATURE (°C) 20 +55
- MOTOR WEIGHT (KG) 7.5
- DEGREE OF PROTECTION IP44


GEO O7 BOARD TECHNICAL DETAILS:
- POWER SUPPLY (VAC) 230 (+6% -10%) 50HZ
- MAX ABSORBED POWER (W) 12
- MAX. MOTOR LOAD (W) 800
- ACCESSORIES MAX LOAD (MA) 300
- OPERATING TEMPERATURE (°C) -20 +55
- CIRCUIT PROTECTION FUSES: NETWORK/ACCESSORIES
- FUNCTION LOGICS: AUTOMATIC/SEMI-AUTOMATIC
- WORK TIME: PROGRAMMABLE FROM 0 TO 59 SEC. (DEFAULT 20 SEC.)
- PAUSE TIME: PROGRAMMABLE FROM 0 TO 4 MIN. (DEFAULT 2 MIN.)
- ELECTRONIC CLUTCH: PROGRAMMABLE ON 50 LEVELS
- LIMIT SWITCH TRIPPING MODE: 4 OPERATION TYPES
- TERMINAL BOARD INPUTS: OPEN/ENCODER/OPENING AND CLOSING SAFETY DEVICES/OPENING AND CLOSING FLASHING LAMP 230VAC - 60W
- QUICK-FIT CONNECTOR: 5 PIN RADIO RECEIVER
- TERMINAL BOARD OUTPUTS: MOTOR/230VAC EXTERNAL COURTESY LAMP/24VDC ACCESSORIES POWER SUPPLY
- INCORPORATED COURTESY LAMP MAX LOAD (W)25
- EXTERNAL COURTESY LAMP MAX LOAD(W) 250


Optional accessories (not included):
- 390607: External release device for an existing handle 390607(ex 00058P0398)

  • Brand: GENIUS
