genius electronic board brain 15 24v 6100263

SKU: 6100263

£345.00  £162.15VAT INCLUDED

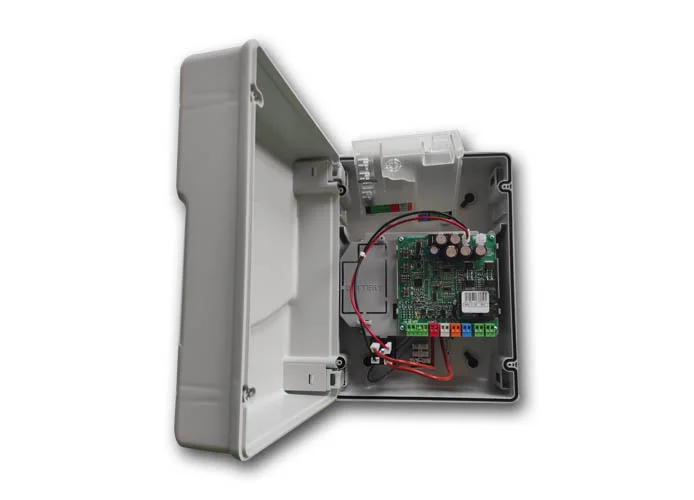

GENIUS - ELECTRONIC BOARD FOR ONE OR TWO SWING GATE GEARMOTORS 24V DC


BRAIN 15   6100263
24V DC

TECHNICAL DETAILS:
- POWER SUPPLY VOLTAGE (VAC): 230 (+6% -10%) 50HZ
- CENTRAL POWER SUPPLY VOLTAGE (VDC): 24 NOMINAL
- POWER CONSUMPTION (W): 4
- MAX. LOAD MOTOR (W): 150 X 2
- MAX. CURRENT ACCESSORIES (MA): 250
- MAX. CURRENT BUS ACCESSORIES (MA): 400
- OPERATING TEMPERATURE (°C): -20°C +55°C
- PROTECTIVE FUSES: F1 = SELF-RESETTING; F2 = T2A-250V OR T4A-120V
- OPERATING LOGICS: AUTOMATIC/AUTOMATIC "STEP-BY-STEP"/SEMI-AUTOMATIC "STEP-BY-STEP"/SEMI-AUTOMATIC B/PRESENT-MAN
- PAUSE TIME: VARIABLE ACCORDING TO LEARNING(MAX. 10 MIN.)
- TERMINAL BOARD INPUTS: OPEN A, OPEN B, STOP, BUS G-WAY (I/O)
- CONNECTOR INPUTS: POWER/BATTERY/ 3-PIN RADIO MODULE
- TERMINAL BOX OUTPUTS: MOTORS/BEACON/ACCESSORY POWER SUPPLY/ELECTRIC LOCK/ SERVICE LIGHT CONTACT (90 SEC. FIXED)
- PROGRAMMABLE FUNCTIONS: LOGIC/SPEED/SOFT TOUCH/WATER HAMMER
- LEARNING FUNCTIONS: PAUSE TIME, DELAY 2ND LEAF CLOSING

  • Brand: GENIUS
