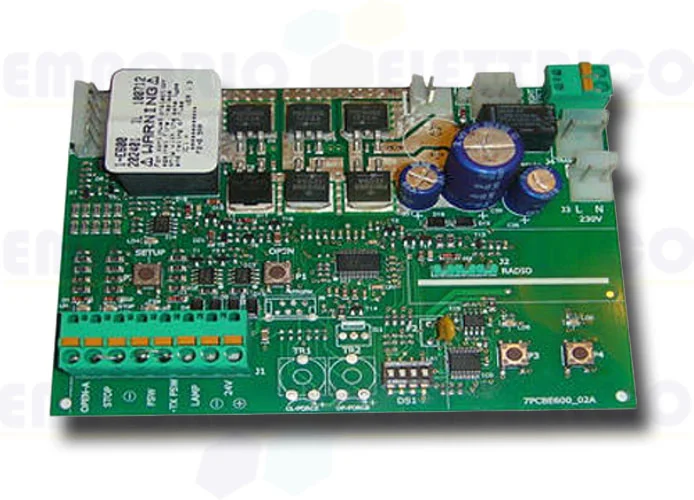

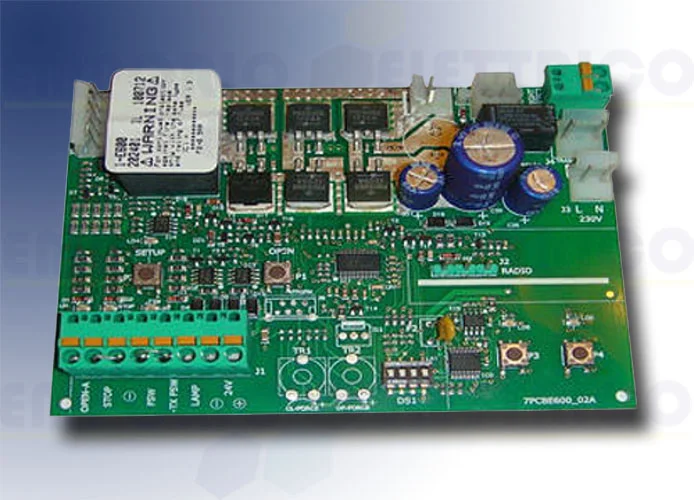

GENIUS - 24V DC ELECTRONIC BOARD FOR CEILING OPERATORS
INTEGRATED IN THE ZODIAC 60 GEARMOTOR
- TERMINAL BOX WITH CONNECTIONS: OPEN; STOP; FAIL SAFE; LEDDY FLASHING LIGHT
- INPUTS WITH CONNECTOR: MOTOR AND ENCODER CONNECTOR; RQFZ GENIUS 3PIN RADIO FREQUENCY MODULE; BATTERY CHARGER
- AUTOMATIC/SEMIAUTOMATIC OPERATING LOGIC
GEO 08 6020444
24V DC
TECHNICAL DETAILS:
- Power supply (Vac): 230
- Accessories power supply (Vdc): 24
- Max accessories load (mA): 200
Complementary accessories (not included):
- 390923: Emergency battery kit XBAT 24
- 6100190: LEDDY 24V Lamp
- 6100346: Radiofrequency module RQFZ 3PIN for Genius, 433 MHz
- 6100347: Radiofrequency module RQFZ 3PIN for Genius, 868MHz
