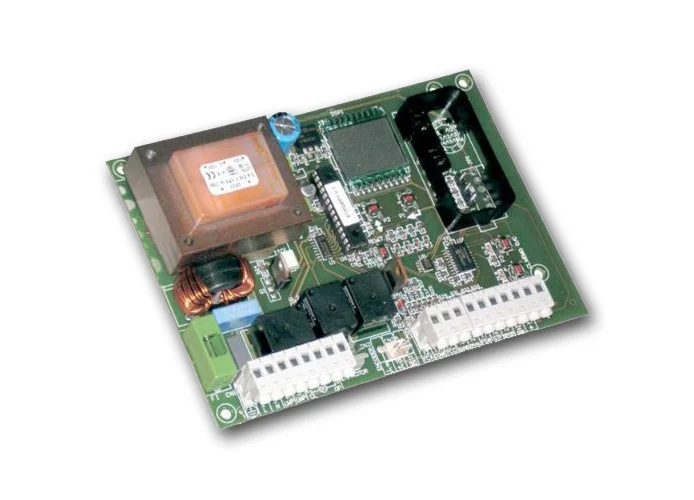

GENIUS - ELECTRONIC BOARD FOR BARRIERS 230V AC
INTEGRATED INTO SPIN 40 C BARRIERS
PAUSE TIME: NINE SELECTABLE LEVELS UP TO A MAXIMUM OF 4 MINUTES
MOTOR POWER ADJUSTABLE ON SEVERAL LEVELS
DECELERATION TIME: THREE SELECTABLE LEVELS
OBSTACLE DETECTION WITH ENCODER
LYNX 06 6100240
230V AC
TECHNICAL DETAILS:
- SUPPLY VOLTAGE (VAC) 230 (+6% -10%) 50HZ
- POWER CONSUMPTION (W) 3
- MOTOR POWER CONSUMPTION (W) 500
- MAX. LOAD ACCESSORIES (MA) 500
- POWER SUPPLY AND MAX. LOAD
- FLASHING LIGHT: 230 VAC 25 W
- MAX. POWER SUPPLY AND LOAD BATTERY STATUS LIGHT 24 VDC 5 W
- OPERATING TEMPERATURE (°C) -20 +55
- PROTECTION FUSES F1= T5A (MAIN TRANSFORMER AND MOTOR); F2= T500MA (ACCESSORIES AND INDICATOR LIGHT)
- OPERATING LOGICS: AUTOMATIC/AUTOMATIC STEP-BY-STEP/SEMI-AUTOMATIC STEP-BY-STEP/SEMI-AUTOMATIC OPENING/CLOSING TIME SELF-LEARNING DURING FIRST MOVEMENT
- SELECTABLE FUNCTIONS OPERATION WITH OR WITHOUT ENCODER/ENCODER SENSITIVITY/AUTOMATIC CLOSING/OPEN INPUT OPERATION/CONDOMINIUM FUNCTION/SLOWDOWN PERCENTAGE/HEATING FUNCTION/IMMEDIATE CLOSING/TIMER FUNCTION/SOFT START/PHOTOCELL OPERATION/MAINTENANCE REQUEST
- TERMINAL BLOCK INPUTS: OPEN/CLOSE/PHOTOCELLS/OPEN LIMIT SWITCH/CLOSE LIMIT SWITCH/ STOP/MAINS POWER/GROUND
- CONNECTOR INPUTS: RADIO MODULE/CIRCUIT BREAKER/ENCODER
- TERMINAL BLOCK OUTPUTS: ACCESSORY POWER SUPPLY/FLASHLIGHT/MOTOR/ INDICATOR LIGHT
