genius electronic board sprint m24 24v 6020664

SKU: 6020664

£158.42VAT INCLUDED

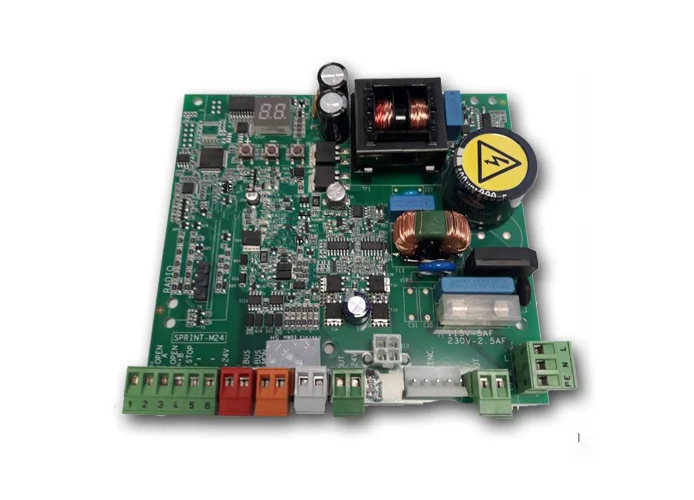

GENIUS - ELECTRONIC BOARD FOR SLIDING GATES 24V DC
INCORPORATED IN BLIZZARD 400 C ENC AND BLIZZARD 800 C ENC MOTORS
WORK TIME PROGRAMMABLE FROM 0 TO 9 MIN AND 50 SEC.
PAUSE TIME PROGRAMMABLE FROM 0 TO 9 MIN AND 50 SEC.
THRUST FORCE ADJUSTABLE ON 50 LEVELS



SPRINT M24    6020664

24V DC


TECHNICAL DETAILS:
- POWER SUPPLY (VAC): 230 (+6% -10%) 50HZ
- FUSE F1: 2.5 A T
- MAX. LOAD ACCESSORIES (MA): 500
- FLASHING LAMP: 24VDC - 15W
- OPERATING TEMPERATURE (°C): -20 +55
- FUNCTION LOGICS: SEMI-AUTOMATIC/SEMI-AUTOMATIC STEP-BY-STEP/AUTOMATIC STEP-BY-STEP/AUTOMATIC SAFETY/SEMI-AUTOMATIC B/DEAD MAN
- TERMINAL BOARD INPUTS: OPEN/OPEN PARTIAL/STOP/MAINS POWER SUPPLY/BUS G-WAY
- TERMINAL BOARD OUTPUTS: FLASH LIGHT/ 24VDC INDICATOR LAMP/PROGRAMMABLE OUTPUT/MOTOR
- QUICK CONNECTOR: BATTERY/3-PIN FOR GENIUS RECEIVER MODULE RQFZ/ENCODER
- PROGRAMMING: NO. 3 KEYS AND DISPLAY, SIMPLE AND COMPLETE MODE
- PROGRAMMABLE FUNCTIONS SIMPLE MODE: OPERATING LOGIC/PAUSE TIME/PUSHING FORCE/OPENING SPEED/CLOSING SPEED/CLOSING SLOWDOWN/CLOSING SLOWDOWN/MASTER-SLAVE
- PROGRAMMABLE FUNCTIONS COMPLETE MODE: PRE-FLASH/SAFETY LOGIC/PARTIAL OPENING/WORKING TIME/SLOWDOWN SPEED/OUTPUTS/PARTIAL OPEN AND STOP INPUTS (SAFETY EDGE)

  • Brand: GENIUS
