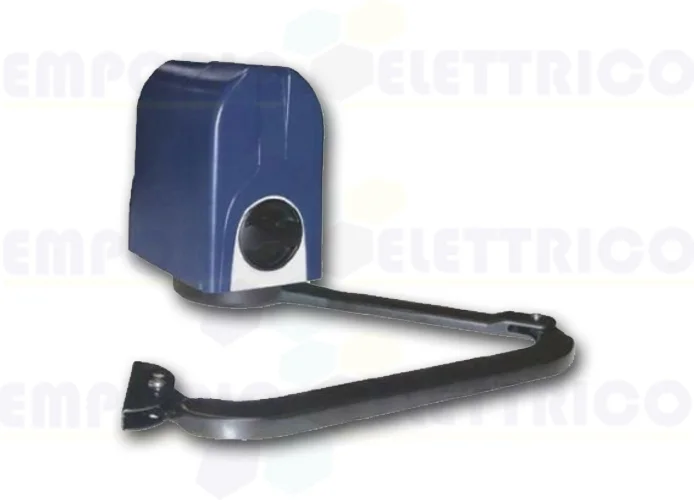

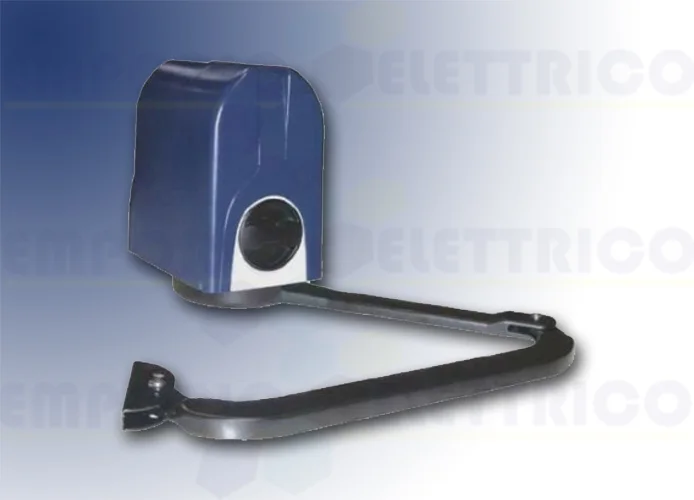

GENIUS - GEARMOTOR WITH 24V IRREVERSIBLE ARTICULATED ARM AND WITH BRAIN 06 CONTROL UNIT FOR SWING DOORS FOR CONDOMINIAL USE, UP TO 2,5M PER LEAF
- IT INCLUDES ENV FUNCTION (VIRTUAL NOMINAL ENCODER)
- G-WAY SYSTEM (WITH BRAIN 06 CARD)
- ROTARY RELEASE AND ACCESS WITH CUSTOMISED KEY
- INTERNAL KINEMATIC MECHANISM CONSISTING OF BRONZE CROWN AND STEEL WORM GEAR
- INTEGRATED ADJUSTABLE MECHANICAL LIMIT SWITCHES
- IT ALLOWS INSTALLATION EVEN ON LARGE PILLARS.
COMPAS 24 C
6170136
24V DC
TECHNICAL DETAILS:
POWER SUPPLY (V) 230
ELECTRIC MOTOR (V) 24
NOMINAL POWER (W) 140
MAX. TORQUE (NM) 250
ANGULAR SPEED (°/SEC) 13
MAX. LEAF WEIGHT (KG)¹ 310
MAX. CONSECUTIVE CYCLES 30
OPERATING FREQUENCY AT 20°C CONTINUOUS
OPERATING TEMPERATURE (°C) 20 +55
DEGREE OF PROTECTION IP44
WEIGHT (KG) 8,7
