genius irreversible gearmotor euro breeze 06 c sb/rh 230v 6120036

SKU: 6120036

£734.00  £344.98VAT INCLUDED

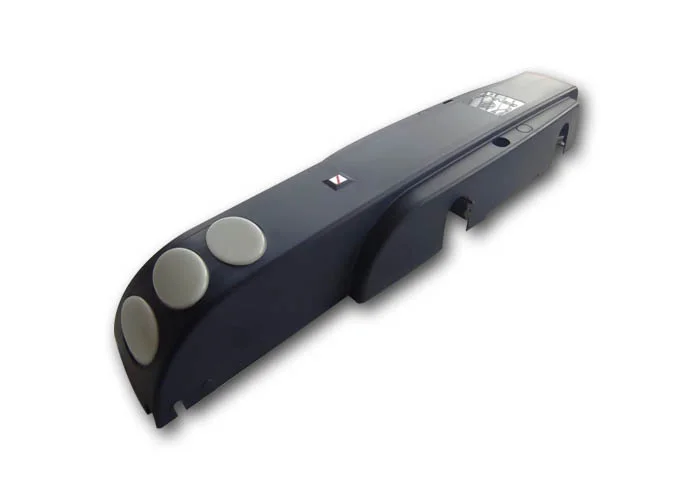

GENIUS - EURO BREEZE 06 IRREVERSIBLE GEARMOTOR WITH INTEGRATED GEO 07 CONTROL BOARD FOR UP-AND-OVER DOORS UP TO 3,3 x 3 m ( 5 x 3 m WITH TWO MOTORS)
SUITABLE FOR RESIDENTIAL USE
INTEGRATED ELECTRIC LIMIT SWITCHES AND COURTESY LAMP
SUPPORTING CROSSBAR PREPARED FOR THE INSTALLATION OF THE GEARED MOTOR IN VARIOUS POSITIONS
POWER SUPPLY:230V AC

MODEL WITH CONTROL UNIT GEO 07 ON BOARD




6120036
EURO BREEZE 06 C SB/RH
230V AC
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELETTRIC MOTOR (V): 230
- POWER (W): 350
- CURRENT (A): 1.5
-
THERMAL PROTECTION (°C): 140
-
CAPACITOR (μF): 10
- MAX. TORQUE (NM): 300
- ANGULAR SPEED (°/SEC): 12
- OPENING TIME AT 90° (SEC):¹ 15
- USAGE FREQUENCY AT 20°C: S3 - 30%
- CYCLES PER HOUR AT 20°C: ≥24
- OPERATING TEMPERATURE (°C): 20 +55
- OPERATOR WEIGHT (KG): 7.5
- DEGREE OF PROTECTION²: IP44

  • Brand: GENIUS
