GENIUS - IRREVERSIBLE ACTUATOR FOR COUNTERWEIGHTED OVERHEAD DOORS 230V
- FOR RESIDENTIAL USE
- SINGLE APPLICATION FOR DOORS UP TO 10QM AND DOUBLE APPLICATION FOR DOORS UP TO 15QM
- BUILT-IN ELECTRIC ENCODERS AND LIMIT SWITCHES
- INTEGRATED COURTESY LIGHT AND CONTROL BUTTON
- SUPPORTING CROSSBAR PREPARED FOR MOUNTING THE GEARMOTOR IN SEVERAL POSITIONS
- REVAMPED AESTHETIC DESIGN AND ADVANCED LED LIGHTING FOR GREATER EFFICIENCY AND DURABILITY
OPENING TIME AND MAX. DOOR DIMENSIONS CALCULATED FOR CORRECTLY EXECUTED INSTALLATIONS AT THE DIMENSIONS INDICATED IN THE INSTALLATION INSTRUCTIONS AND WITHOUT SLOWING DOWN.
THE GEARMOTOR IS TO BE CONSIDERED IP44 WHEN USING THE IP44 KIT FOR EQUIPMENT CODE GENIUS 110554.

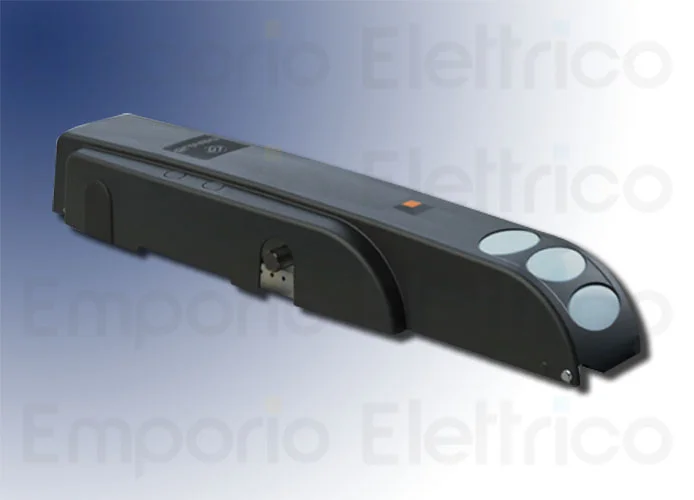

GENIUS - EURO BREEZE 06 SB/SX
6120056 (ex code 6120045)
TECHNICAL FEATURES:
- POWER SUPPLY (V): 230
- ELECTRIC MOTOR (V): 230
- POWER (W): 350
- CURRENT (A): 1.5
- THERMOPROTECTION (°C): 140
- CAPACITOR (μF): 10
- MAX. TORQUE (NM): 300
- ANGULAR SPEED (°/SEC): 12
- OPENING TIME AT 90° (SEC):¹ 15
- OPERATING FREQUENCY AT 20°C: S3 - 30%
- CYCLES PER HOUR AT 20°C: >36
- TEMP. OPERATING TEMPERATURE (°C): 20 +55
- OPERATOR WEIGHT (KG): 7.5
- DEGREE OF PROTECTION²: IP44
