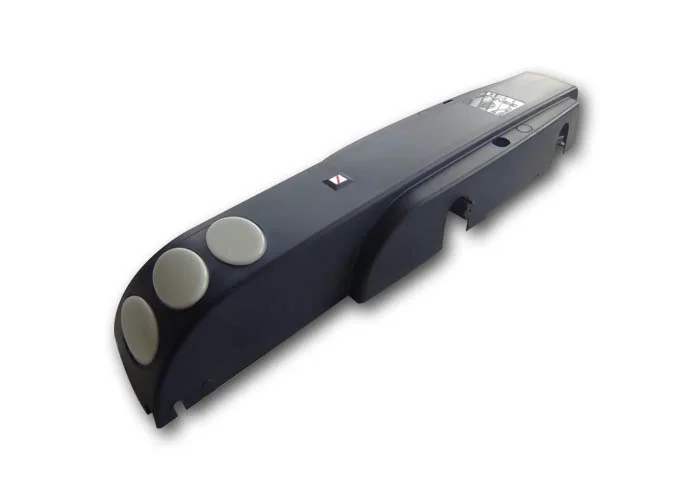

GENIUS - IRREVERSIBLE GEARMOTOR EURO BREEZE 06 SLOW FOR UP-AND-OVER DOORS UP TO 3,3 x 3 m ( 5 x 3 m WITH TWO MOTORS)
SUITABLE FOR RESIDENTIAL USE
ELECTRIC LIMIT SWITCH, COURTESY LIGHT AND ENCODER INTEGRATED
SUPPORTING CROSSBAR PREPARED FOR MOUNTING THE GEARMOTOR IN VARIOUS POSITIONS
POWER SUPPLY:230V AC
MODEL WITHOUT CONTROL UNIT ON BOARD
6120046
EURO BREEZE 06 LENTO SB/SX
230V
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELECTRIC MOTOR (V): 230
- POWER (W): 300
- CURRENT (A): 1.2
- THERMAL PROTECTION (°C): 140
- CAPACITATOR (μF): 8
- MAX. TORQUE (NM): 250
- ANGULAR SPEED (°/SEC): 8
- OPENING TIME AT 90° (SEC):¹ 22
- OPERATING FREQUENCY AT 20°C: S3 - 30%.
- CYCLES PER HOUR AT 20°C: ≥24
- OPERATING TEMPERATURE (°C): 20 +55
- OPERATOR WEIGHT (KG): 7.5
- DEGREE OF PROTECTION²: IP44
