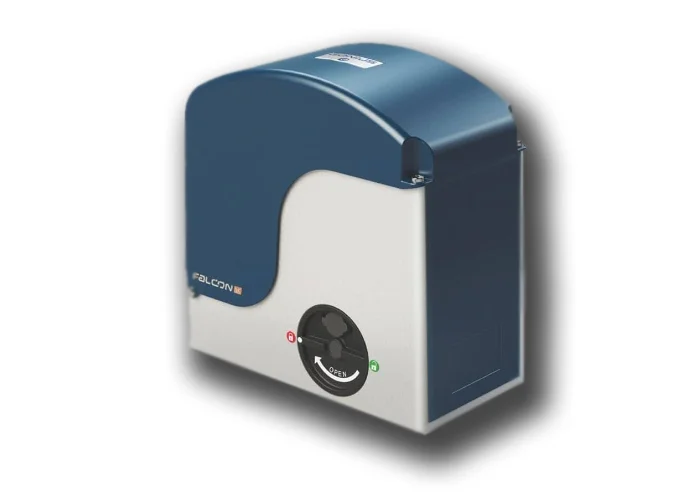

GENIUS - IRREVERSIBLE GEARMOTOR FALCON WITH SPRINT CENTRAL 382 FOR SLIDING GATES MAX 2000 kg
SUITABLE FOR INDUSTRIAL USE
EQUIPPED WITH FULLY PROTECTED MAGNETIC LIMIT SWITCHES
ELECTRONIC BOARD WITH PROTECTION COVER AND EXTERNAL PROGRAMMING BUTTONS
ROTARY RELEASE WITH CUSTOMISED KEY
INTERNAL KINEMATIC MECHANISM CONSISTING OF BRONZE CROWN GEAR AND STEEL WORM GEAR
ROTATING CONTROL PANEL FOR IMPROVED ACCESSIBILITY TO PROGRAMMING
POLYESTER POWDER COATED GEARBOX BODY AND ABS PROTECTION CASING
POWER SUPPLY: 230V AC
6110022
FALCON M20 C
230V
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELECTRIC MOTOR (V): 230
- NOMINAL POWER (W): 800
- CURRENT (A): 3.50
- THERMAL PROTECTION (°C): 140
- CAPACITOR (ΜF): 20
- MAX. TORQUE (NM): 45
- THRUST ON PINION (DAN): 150
- PINION TYPE: Z16 MOD. 4
- ANGULAR SPEED (M./MIN.): 10
- OPERATING FREQUENCY AT 20°C: S3 - 40%
- OPERATING TEMPERATURE (°C): -20 +55
- DEGREE OF PROTECTION: IP44
- WEIGHT (KG): 15
