genius irreversible gearmotor mercury cv plus 230v 6120034

SKU: 6120034

£1,196.00  £574.08VAT INCLUDED

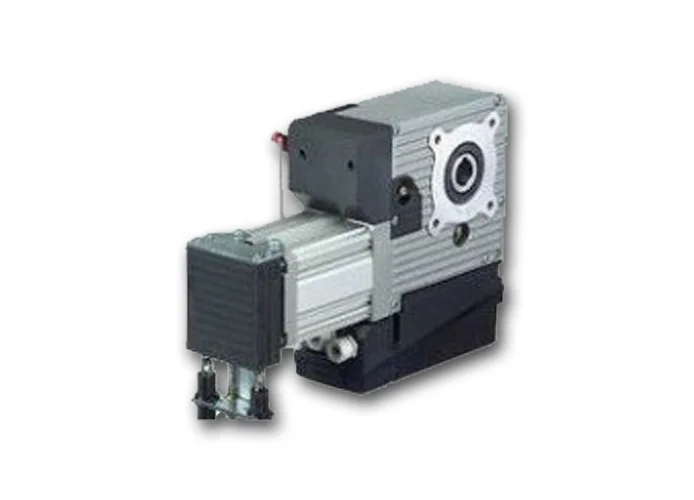

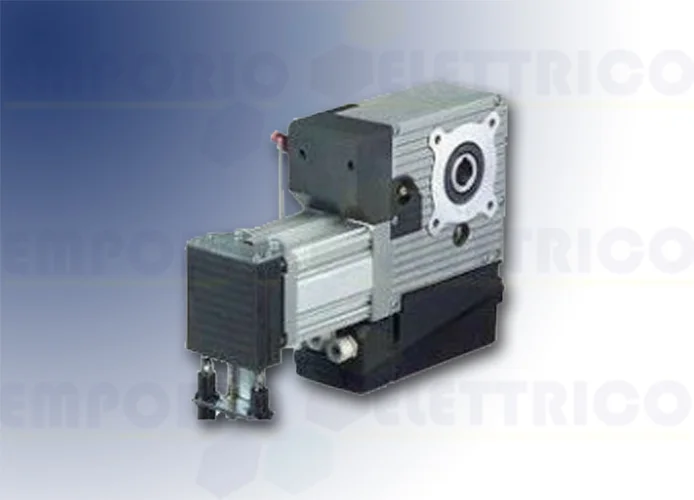

GENIUS - IRREVERSIBLE GEARMOTOR MERCURY WITH CENTRAL PLUS INCLUDED AND WINCH FOR INDUSTRIAL GATES
SUITABLE FOR INDUSTRIAL USE
EXTREMELY COMPACT AND QUIET SINGLE-PHASE GEAR MOTOR
IRREVERSIBLE WORM GEAR/GEARBOX ENTIRELY IN OIL BATH TO ENSURE MECHANICAL LOCKING OF THE DOOR
CAN BE INSTALLED DIRECTLY ON THE WINDING DRUM SHAFT OR VIA CHAIN TRANSMISSION
IN THE MANUAL RELEASE SYSTEM THERE IS A SPECIFIC MECHANISM THAT PREVENTS FEEDING DURING THE CHAIN PULLING PHASE.




6120034
MERCURY CV PLUS
230V


TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELECTRIC MOTOR (V): 230
- POWER (W): 800
- CURRENT (A): 3.5
- CAPACITOR (μF): 20
- ROTATION SPEED (TURNS/MIN): 23
- THERMAL PROTECTION (°C): 140
- OPERATING FREQUENCY AT 20°C: S3 - 40%
- MAX. CONSECUTIVE CYCLES: 5
- MOTION TRANSMISSION THROUGH SHAFT: Ø 25,4 MM
- NOMINAL SHAFT TORQUE (NM): 50
- MAX. TURNS ROPE WINDING DRUMS: 24 TURNS
- OPERATING TEMPERATURE (°C): -20 +55
- GEARED MOTOR WEIGHT (KG): 14
- DEGREE OF PROTECTION: IP54

  • Brand: GENIUS
