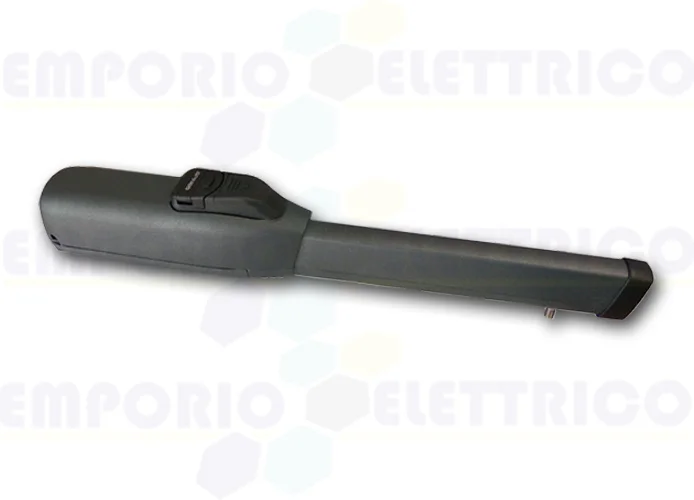

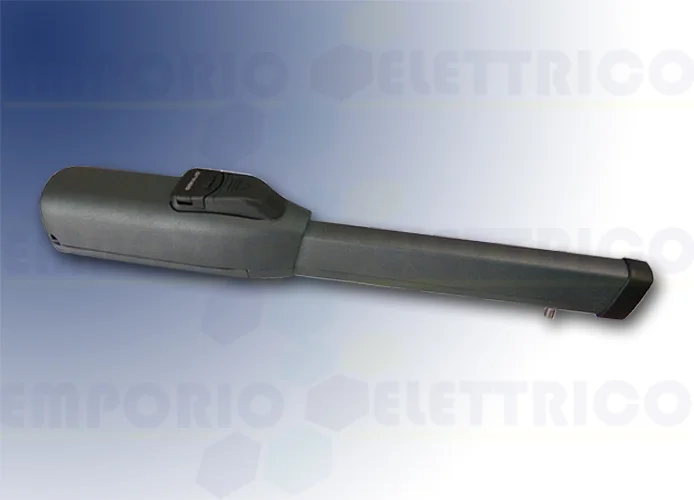

GENIUS - 230V IRREVERSIBLE GEARMOTOR FOR SIROCCO 250 SWING GATES, UP TO 2,5M OF LENGTH PER LEAF
- SLOWDOWN IN OPENING AND CLOSING PHASES
- INTEGRATED MECHANICAL STOPS
- FLOATING BRACKET (PUSH OFF AXIS)
- G-WAY AND PROCODER SYSTEM (WITH BRAIN19 BOARD)
- LEVER RELEASE AND ACCESS WITH CUSTOMISED KEY
- INTERNAL KINEMATIC MECHANISM CONSISTING OF BRONZE CROWN AND STEEL WORM GEAR
- HORIZONTAL CABLE OUTLET FACILITATING INSTALLATION CLOSE TO THE GROUND
SIROCCO 250
6170124
230V
TECHNICAL DETAILS:
POWER SUPPLY (V) 230
ELECTRIC MOTOR (V) 230
NOMINAL POWER (W) 250
CURRENT (A) 1.1
THERMAL PROTECTION (°C) 140
CAPACITATOR (ΜF) 6.3
THRUST (DAN) 200
STROKE (MM) 300 (350 MM WITHOUT MECHANICAL STOPS)
MAX. SPEED (CM/SEC.) 1.6
OPERATING FREQUENCY AT 20°C S3 - 30%
OPERATING TEMPERATURE (°C) -20 +55
DEGREE OF PROTECTION IP54
WEIGHT (KG) 6,5
