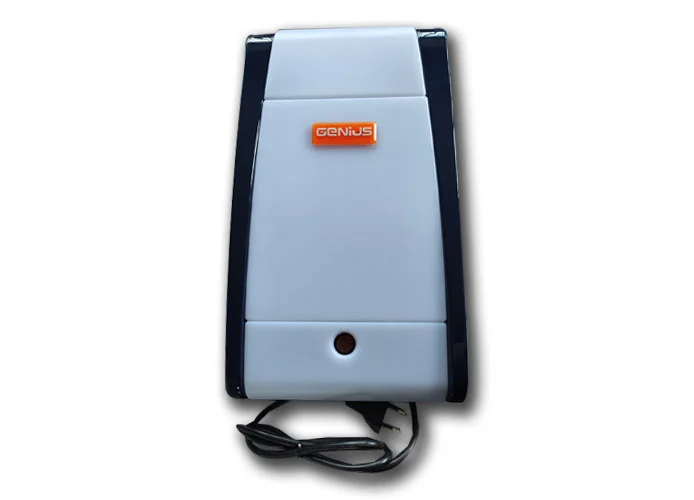

GENIUS - ZODIAC IRREVERSIBLE GEARMOTOR WITH INTEGRATED GEO 08 CONTROL BOARD FOR SECTIONAL DOORS UP TO 5 x 2,50 m, 600 N THRUST DOORS AND UP-AND-OVER DOORS UP TO 3 x 2,50 m
24V VERSION WITH 600N THRUST
BASE MADE OF STRONG PLASTIC MATERIAL THAT REDUCES ITS WEIGHT AND MAKES IT EASIER TO HANDLE
SUPPLIED WITH POWER CORD AND PLUG
PREPARED FOR THE USE OF ENERGY-SAVING LAMPS
INTEGRATED COURTESY LAMP
PROGRAMMING ACCESS PANEL WITHOUT THE NEED TO OPEN THE OPERATOR BONNET
INTEGRATED OPENING CONTROL BUTTON
CHAIN TRACK NOT INCLUDED
6120041
ZODIAC 60
24V DC
TECHNICAL DETAILS:
POWER SUPPLY (V) 230
ELETTRIC MOTOR (V) 24
POWER (W) 220
THRUST (DAN) 600
MAX. CONSECUTIVES CYCLES 30
MAX. CARRIAGE (MM.) 1900 - 2500 - 3100
NO-LOAD CARRIAGE SPEED (M/MIN.) 6.6
USAGE FREQUENCY AT 20°C 80 CYCLES PER DAY
OPERATING TEMPERATURES (°C) -20 +55
OPERATOR WEIGHT (KG) 6.6
DEGREE OF PROTECTION IP20
