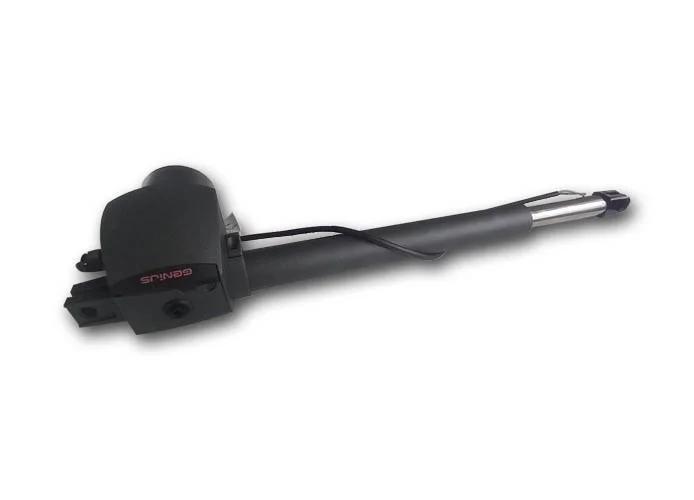

GENIUS - LEFT ACTUATOR FOR G-BAT 230V SWING GATES, UP TO 3 m PER LEAF
USER-FRIENDLY LEVER RELEASE
INTERNAL KINEMATIC MECHANISM CONSISTING OF BRONZE CROWN GEAR AND STEEL WORM GEAR
SLOWDOWN IN OPENING AND CLOSING PHASES
OPTIONAL 6100254 CARTER FOR ROD COVER
6170027
G-BAT 300 SX
230V
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELECTRIC MOTOR (V): 230
- NOMINAL POWER (W): 280
- CURRENT (A): 1.2
- THERMAL PROTECTION (°C): 140
- CAPACITATOR (μF): 8
- THRUST (DAN): 350
- STROKE (MM): 300
- MAX. SPEED (CM/SEC.)¹: 1.6
- OPERATING FREQUENCY AT 20°C: S3 - 30%.
- OPERATING TEMPERATURE (°C): -20 +55
- DEGREE OF PROTECTION: IP54
- WEIGHT (KG): 6.5
