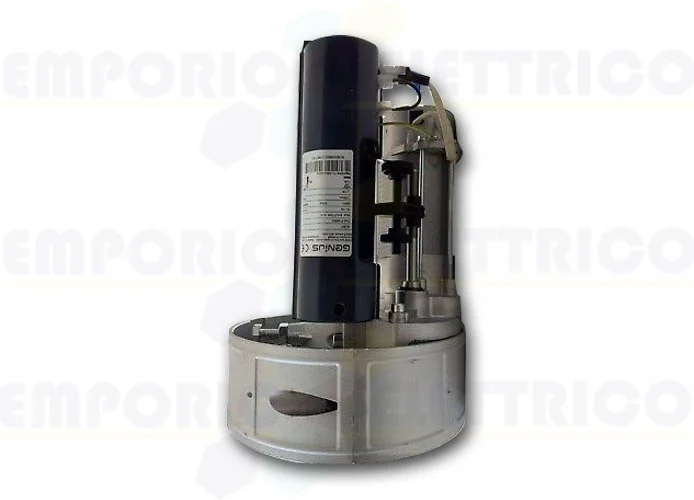

GENIUS - REVERSIBLE OPERATOR FOR ROLLING SHUTTERS, 200 mm CROWN WHEEL DIAMETER, 60 mm SHAFT DIAMETER, LIFTING UP TO 170 Kg (THE CROWN DIAMETER CAN BE EXTENDEDIT TO Ø 220 MM BY USING THE PLASTIC ADAPTER SLEEVE INCLUDED IN THE PACKAGE FOR SHUTTER MODELS 15
IT CAN ALSO BE USED WITH SHAFT DIAMETERS Ø 48 MM, Ø 42 MM OR Ø 33 MM BY ADDING OPTIONAL ADAPTER SLEEVES 6100273)
- COMPLETELY MAINTENANCE-FREE, SILENT AND QUICK TO INSTALL
- MICROMETRIC LIMIT SWITCH ADJUSTMENT IN SEMI-AUTOMATIC MODE
IT CAN BE COMBINED WITH ELECTRIC BRAKE 391450
SHUTTER 15 R 6140003
230V AC
TECHNICAL DETAILS:
POWER SUPPLY (V): 230
POWER FREQUENCY (HZ): 50
TORQUE (NM):170
POWER (W):630
ABSORPTION (A):2.7
MAX. WORKING TIME (MIN.):4
MAX. SHUTTER HEIGHT (M): 6
OPERATING TEMPERATURE (°C): -20 +55
