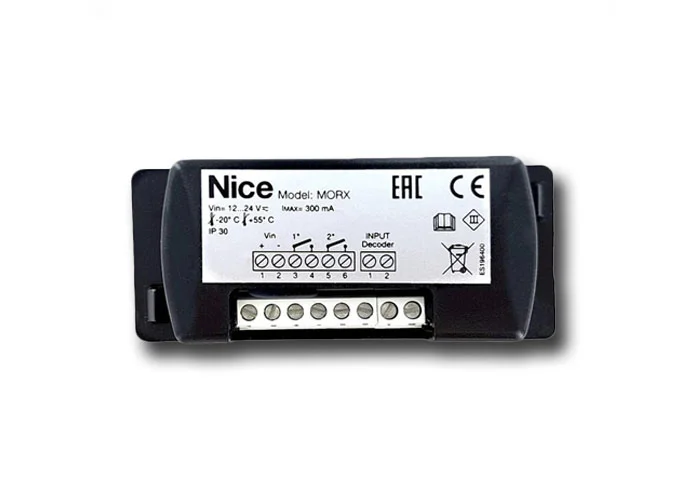

NICE - DECODER FOR 1 ETP OR UP TO 4 EDS/EDSI CONNECTED IN PARALLEL
- EQUIPPED WITH 1 BM1000 MEMORY FOR 255 COMBINATIONS
NICE
MORX
TECHNICAL FEATURES:
- MEMORY CAPACITY: 2 BM1000 for max. 510 combinations or 510MOCARD, MOCARDP and HSB1
- RELAY RANGE: Max. 500 mA e 48 Vac/Vdc
- POWER SUPPLY: 10 ÷ 35 Vdc. 12 ÷ 28 Vac
- MAXIMUM ABSORPTION: 24 Vdc=70 mA; 24 Vac=200 mA; 12 Vdc=150 mA; 12 Vac=300 mA; with 1 ETP; or up to 4 EDS/EDSI
- DEGREE OF PROTECTION: IP30
- OPERATING TEMPERATURE(°C Min/Max): -20 ÷ +70
- DIMENSIONS (mm): 98x42x25
