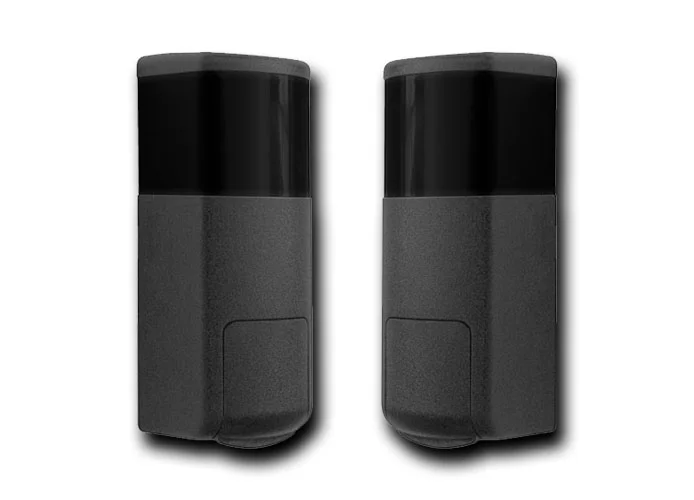

NOLOGO - PHOTOCELLS FOR GATES AND DOORS WITH UP TO 180° ROTATION.
- 12-36 VAC/DC POWER SUPPLY WITH PROTECTION CIRCUIT AND SCREEN PROTECTION
- RANGE UP TO 15M IN ALL CONDITIONS
- SET CONSISTING OF TRANSMITTER AND RECEIVER
- PREPARED FOR SYNCHRONISM.
- THIS PHOTOCELL HAS THE OPTION OF DELAYING THE INTERVENTION SPEED OF THE 'SNOW' RELAY TO 300 MS
- SUPPLIED ELECTRONIC RELAY.
NOLOGO
TECHNICAL FEATURES:
- POWER SUPPLY: 12-36VAC/DC
- CONSUMPTION (MA): TX25MA, RX 35MA
- MAXIMUM RANGE (MT): 25
- GRADE IP: 55
- SIZE (MM): 36X103X38.
