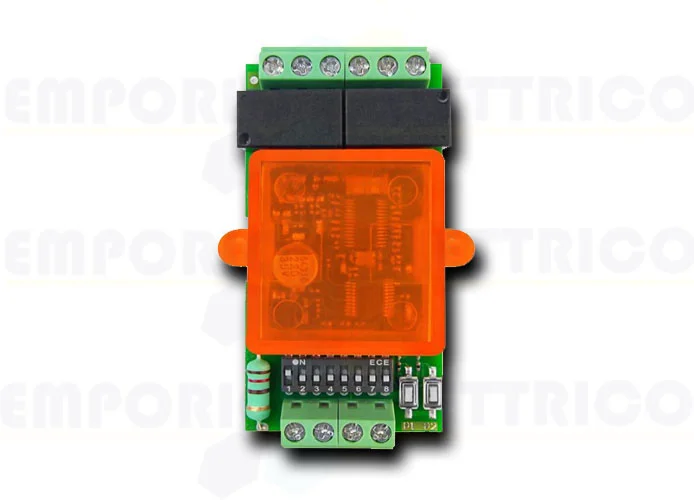

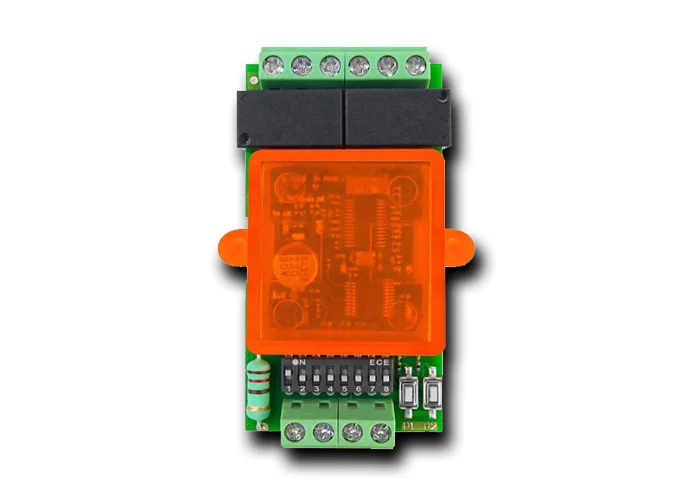

NOLOGO - TWO-CHANNEL RECEIVER FOR LIGHTS OR DEVICES WITH 5A CONTACT, 433.92MHZ.
- TWO-CHANNEL SELF-LEARNING RECEIVER SPECIALLY DESIGNED FOR REMOTE CONTROL OF LIGHTS OR OTHER EQUIPMENT VIA CONTACT OUTPUT UP TO 230VAC 5A
- IT HANDLES STANDARD CODES FROM 12 TO 64 BITS AND ROLLING HCS© OR ROLLING EB
-MICRO SWITCH FOR SELECTING NORMAL OUTPUTS OR STEP BY STEP , NA/NC
- DELETION OF ONE OR ALL CODES
- POSSIBLE CONNECTION VIA EB BUS WITH WHICH IT ALSO BECOMES THE DECODER FOR PUSH-C1.
NOLOGO
RX2-LUCI
TECHNICAL CHARACTERISTICS:
- FREQUENCY: 433,92 MHZ
- CODE TYPE: FIXED/ROTATING CODE
- MEMORY CAPACITY : 21 CODES
- IMPEDENCE: 52 OHM
- POWER SUPPLY: 12-36VAC/DC
- CONSUMPTION: 10/30-50MA
- RELAY CONTACT: MAX 5MA
- SIZE (MM) : 45X70X20.
