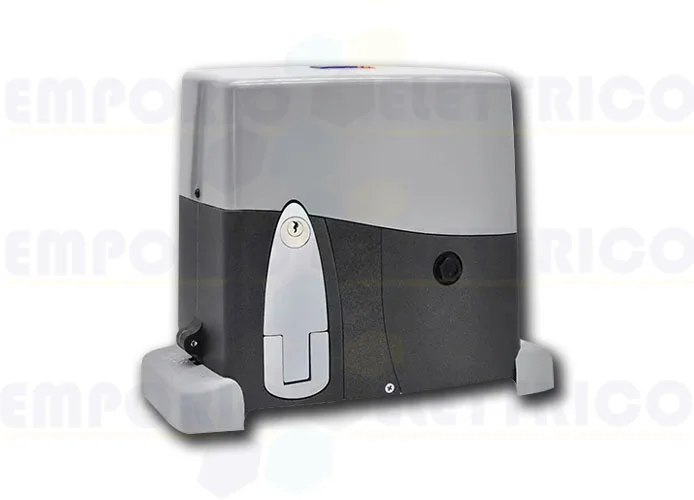

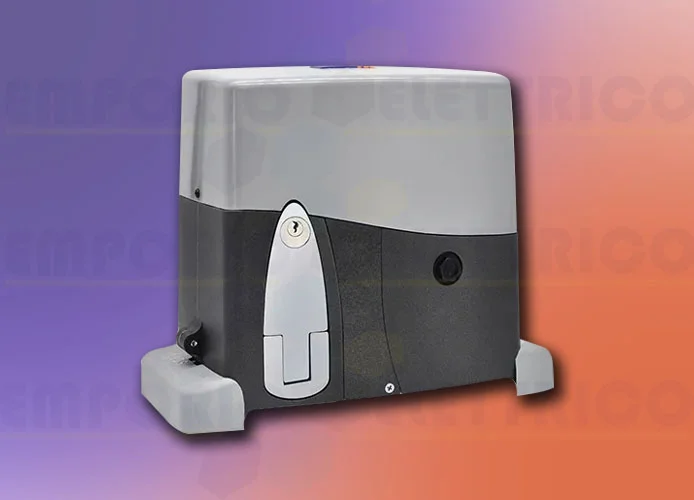

VDS - IRREVERSIBLE GEARMOTOR AG FUTURE 800 FOR SLIDING GATES, UP TO 800 KG
SEMI-INTENSIVE USE
WITHOUT CONTROL UNIT

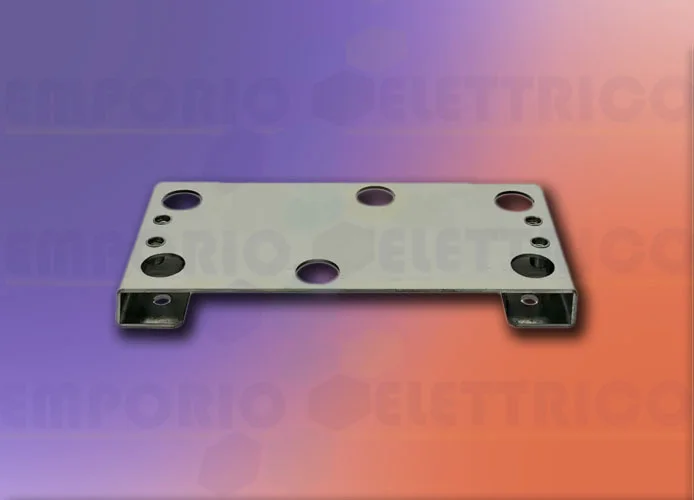

CPT COUNTERPLATE NOT INCLUDED.
IRREVERSIBLE GEARMOTOR AG FUTURE 800 11068
230V AC
FEATURES - For gates up to 800 Kg
- Painted die-cast aluminium gearmotor casing
- Steel and cast iron gears machined from billet
- Stator and mechanical parts in oil bath - except 800kg version. Grease lubricated
- Version with or without control equipment
- Control equipment with radio receiver and antenna, in a special container with aerstop seal to protect against moisture and insects
- Pre-wiring and easy programming software
- High performance electric motor
- Manual lever release with customised key
- Electronic torque control
- Extremely silent operation
- Anti-crushing device (EN 12453) and speed slowdown (EN 12453)
- Three-phase 1800 kg version with inverter control unit with soft star - soft stop function
- 230Vac - 380Vac power supply.
