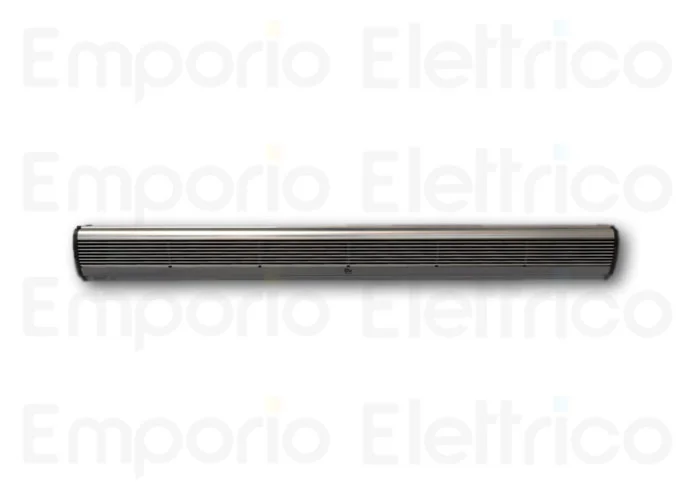

VORTICE - AIR BARRIER FOR HORIZONTAL INSTALLATION ON DOORS OR OPENINGS IN COMMERCIAL PREMISES.
• SILVER GREY SATIN-FINISH ALUMINIUM FRONT PANEL WITH AIR INTAKE GRILLE CONSISTING OF 9 HORIZONTAL POLISHED ALUMINIUM ELEMENTS. THE REAR BODY IN BLACK SHEET METAL ACTS AS A SUPPORT FOR FIXING THE COMPONENTS INSIDE THE PRODUCT. THE BLACK SIDE PANELS ARE IN ABS THERMOPLASTIC RESIN.
• NOMINAL PRODUCT WIDTH: 2000MM.
• NEUTRAL VERSION (AIR AT ROOM TEMPERATURE) AND 2 OPERATING SPEEDS.
• BI-SHAFT AC MOTOR, THERMALLY PROTECTED.
• MINIMUM FLOW RATE: 2900 M3/H
• MAXIMUM FLOW RATE: 3600 M3/H
• 2 TANGENTIAL FANS, MADE OF BLACK THERMOPLASTIC RESIN (SAN), ULTRASONICALLY WELDED, DIRECT THE AIR THROUGH A LONGITUDINAL OPENING LOCATED AT THE BOTTOM OF THE MACHINE.
• IR REMOTE CONTROL, WITH A BUTTON TO SWITCH THE PRODUCT ON/OFF AND SELECT THE SPEED; THE SAME CONTROLS ARE LOCATED ON THE FRONT PANEL OF THE PRODUCT (3 BUTTONS).
• POWER CABLE WITH SCHUKO PLUG.
• POSSIBILITY OF COMBINATION WITH STANDARD "DOOR SENSORS".
• ADJUSTABLE FINS TO DIRECT THE AIR JET.
AIR DOOR AD2000 65198
MOTOR CLASS F
MAX. CURRENT CONSUMPTION (A) 1,52
FREQUENCY (HZ) 50
NUMBER OF SPEEDS 2
WEIGHT (KG) 20,5
MAX POWER CONSUMPTION AT MAX SPEED (W) 350
MAX POWER ABSORBED AT MIN SPEED (W) 300
TEMP. MAX. ROOM TEMPERATURE CONTINUOUS OPERATION (°C) 60
VOLTAGE (V) 220-240
MAX. FLOW RATE AT MAX. SPEED (L/S) 1000
MAX. FLOW RATE AT MAX. SPEED(M³/H) 3600
MAX FLOW RATE AT MIN SPEED (L/S) 805
MAX. FLOW RATE AT MIN. SPEED (M³/H) 2900
SOUND PRESSURE LP [DB (A)] 2M - MAX. SPEED.61
SOUND PRESSURE LP [DB (A)] 2M - MIN SPEED.59
RPM MAX: 1450
RPM MIN: 1400
AIR SPEED AT MAX SPEED (M/S): 11
AIR SPEED AT MIN SPEED (M/S): 9

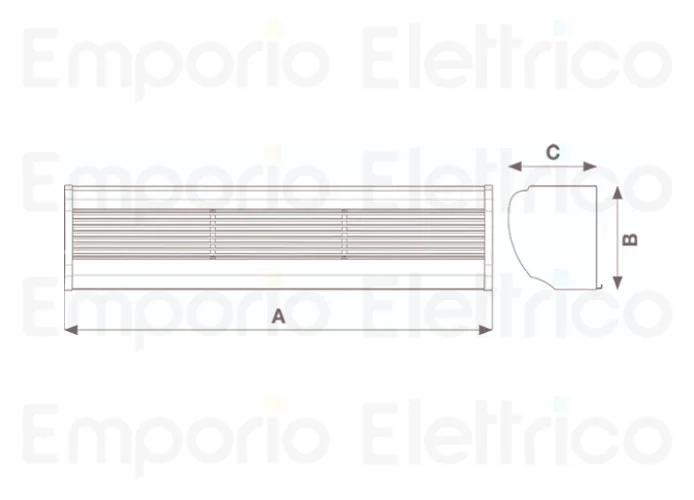

DIMENSION A (MM): 2000
DIMENSION B (MM): 220
DIMENSION C (MM): 190
