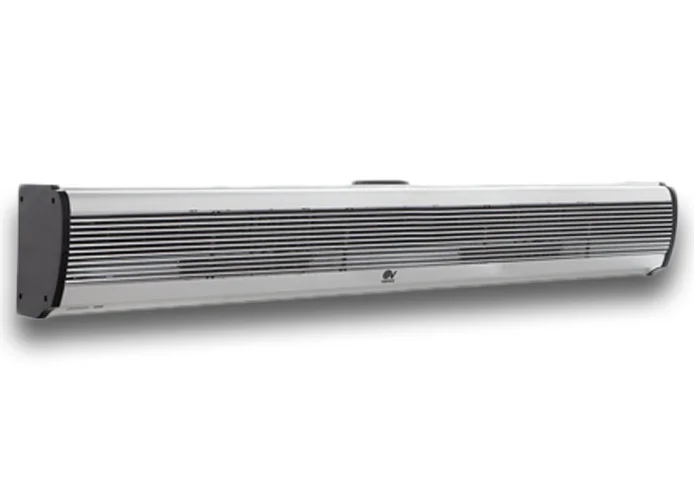

VORTICE - AIR BARRIER FOR HORIZONTAL INSTALLATION ON DOORS OR OPENINGS IN COMMERCIAL PREMISES.
- SILVER GREY SATIN-FINISH ALUMINIUM FRONT PANEL WITH AIR INTAKE GRILLE CONSISTING OF 9 HORIZONTAL POLISHED ALUMINIUM ELEMENTS. THE REAR BODY IN BLACK SHEET METAL ACTS AS A SUPPORT FOR FIXING THE COMPONENTS INSIDE THE PRODUCT. THE BLACK SIDE PANELS ARE IN ABS THERMOPLASTIC RESIN.
- NOMINAL PRODUCT WIDTH: 900 MM.
- NEUTRAL VERSION (AIR AT ROOM TEMPERATURE) AND 2 OPERATING SPEEDS.
- BI-SHAFT AC MOTOR, THERMALLY PROTECTED.
- MINIMUM FLOW RATE: 1100 M3/H
- MAXIMUM FLOW RATE: 1400 M3/H
- 2 TANGENTIAL FANS, MADE OF BLACK THERMOPLASTIC RESIN (SAN), ULTRASONICALLY WELDED, DIRECT THE AIR THROUGH A LONGITUDINAL OPENING LOCATED AT THE BOTTOM OF THE MACHINE.
- IR REMOTE CONTROL, WITH A BUTTON TO SWITCH THE PRODUCT ON/OFF AND SELECT THE SPEED; THE SAME CONTROLS ARE LOCATED ON THE FRONT PANEL OF THE PRODUCT (3 BUTTONS).
- POWER CABLE WITH SCHUKO PLUG.
- POSSIBILITY OF COMBINATION WITH STANDARD "DOOR SENSORS".
- ADJUSTABLE FINS TO DIRECT THE AIR JET.
AIR DOOR AD900 65195
MAX. CURRENT CONSUMPTION (A): 0.70
FREQUENCY (HZ): 50
NUMBER OF SPEEDS: 2
WEIGHT (KG): 10
MAX POWER CONSUMPTION AT MAX SPEED (W): 160
MAX POWER ABSORBED AT MIN SPEED. (W): 110
TEMP. MAX. ROOM TEMPERATURE CONTINUOUS OPERATION (°C): 30
VOLTAGE (V): 220-240
MAX FLOW RATE AT MAX SPEED (L/S): 388 (L/S): 388
MAX. FLOW RATE AT MAX. SPEED (M³/H): 1400
MAX FLOW RATE AT MIN SPEED (M³/H): 1400 (L/S): 305
MAX. FLOW RATE AT MIN. SPEED (M³/H): 1100
SOUND PRESSURE LP [DB (A)] 2M - MAX. SPEED: 57
SOUND PRESSURE LP [DB (A)] 2M - MIN SPEED: 55
RPM MAX: 1450
RPM MIN: 1400
AIR SPEED AT MAX SPEED (M/S): 11
AIR SPEED AT MIN SPEED (M/S): 9
DIMENSION A (MM): 900
DIMENSION B (MM): 220
DIMENSION C (MM): 190
