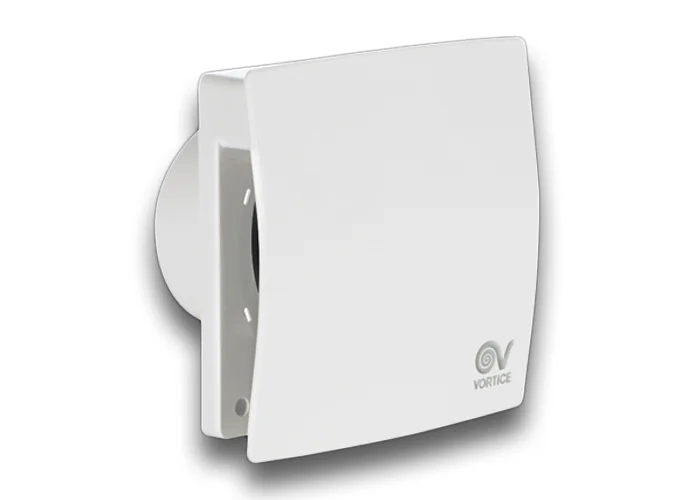

VORTICE - AXIAL WALL, CEILING AND FALSE CEILING ASPIRATOR, IDEAL FOR AIR EXCHANGE IN RESIDENTIAL AND COMMERCIAL PLACES, SMALL AND MEDIUM DIMENSIONS, EVEN IN THE PRESENCE OF MEDIUM LENGTH EXHAUSTED PIPES
• HOUSINGS MADE OF SHOCKPROOF AND UV RESISTANT WHITE ABS.
• NOMINAL DIAMETER 100 MM.
• AC MOTOR EQUIPPED WITH LONG-LIFE BALL-BEARINGS, MIXED-FLOW IMPELLERS MADE OF PP RESISTANT TO AGGRESSIVE SUBSTANCES.
• MAXIMUM AIR FLOW 90 M3/H.
• INTEGRATED BUTTERFLY BACK-DRAUGHT SHUTTER DESIGNED TO PREVENT UNWANTED AIR INFLOWS WHEN THE APPLIANCE IS SWITCHED-OFF.
• PROTECTION RATING IP45, SUITABLE FOR INSTALLATION IN ZONE 1 OF BATHROOMS, AS DEFINED BY INTERNATIONAL STANDARD IEC 60364-7.
• IMQ SAFETY CERTIFICATION.
PUNTO EVO FLEXO LONG LIFE 30000 H MEX 100/4" LL 1S 11313
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: 45
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,052
MAX. ABSORBED POWER AT MAX SPEED (W): 9
NOMINAL DIAMETER (MM): 100
VOLTAGE (V): 230
WEIGHT (KG): 0,6
MAX DELIVERY AT MAX SPEED (L/S): 25
MAX DELIVERY AT MAX SPEED (M³/H): 90
PRESSURE MAX - MAX SPEED (MMH20): 4
PRESSURE MAX - MAX SPEED (PA): 39,23
RPM MAX: 2175
SOUND POWER LW [DB(A)] - MAX SPEED: 47,4
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX SPEED: 26,9
SIZE A (MM): 173
SIZE B (MM): 173
SIZE C (MM): 126
SIZE D (MM): Ø 98
SIZE E (MM): 61,5
SIZE F (MM): 50
SIZE G (MM): 132
SIZE H (MM): 132
SIZE L (MM): Ø 3,5
