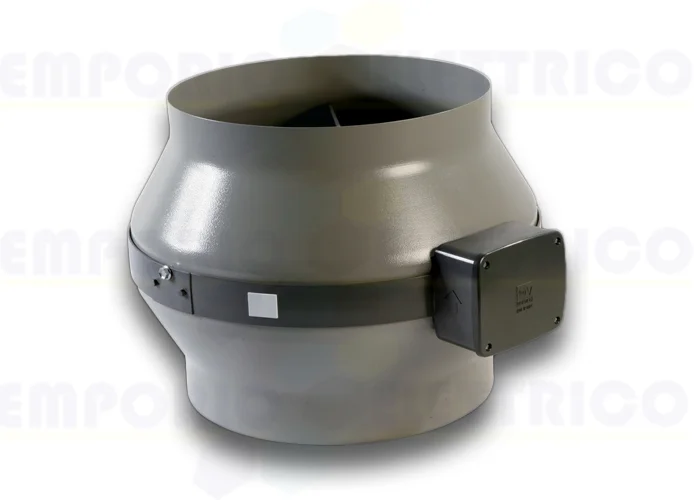

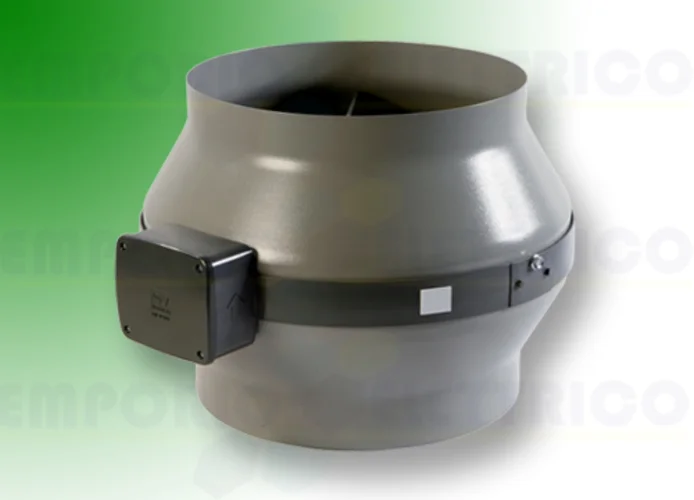

VORTICE - 16150 STEEL AXIAL CENTRIFUGAL ASPIRATOR
• PICKLED AND PHOSPHATED STEEL HOUSING WITH POLYESTER POWDER-COATED FINISH, RESISTANT TO THE AGGRESSIVE ACTION OF ATMOSPHERIC AGENTS.
• NOMINAL DIAMETER 100 MM.
• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:
• AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,
• BACKWARD CURVED CENTRIFUGAL IMPELLER.
• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.
• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.
CA 100 MD 16150
ABSORBED POWER 1ST SPEED (W): 13
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: 44
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,22
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0.06
MAX. ABSORBED POWER AT MAX SPEED (W): 51
NOMINAL DIAMETER (MM): 100
VOLTAGE (V): 220-240
WEIGHT (KG): 2,97
DELIVERY 1ST SPEED (L/S): 22.7
DELIVERY 1ST SPEED (M³/H): 82
MAX DELIVERY AT MAX SPEED (L/S): 81
MAX DELIVERY AT MAX SPEED (M³/H): 293
PRESSURE - 1ST SPEED (MMH20): 16.9
PRESSURE - 1ST SPEED (PA): 166
PRESSURE MAX - MAX SPEED (MMH20): 37.4
PRESSURE MAX - MAX SPEED (PA): 367
RPM MAX: 2400
RPM MIN: 980
SIZE A (MM): 255
SIZE B (MM): 239
SIZE C (MM): 330
SIZE D (MM): 97
SIZE E (MM): 15
SIZE F (MM): 15
