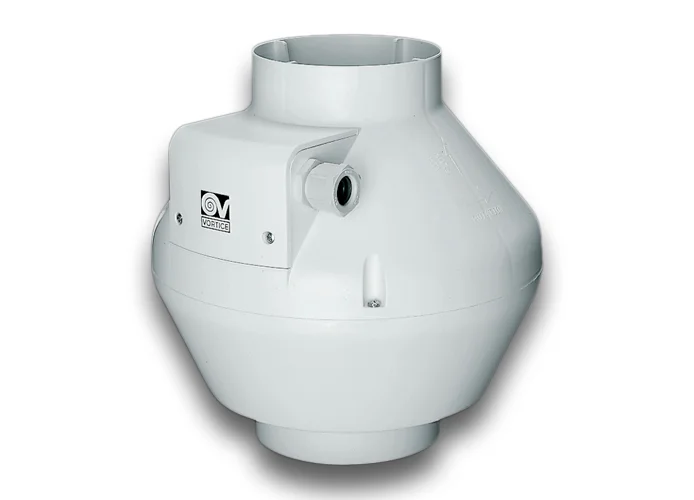

VORTICE - 16028 AXIAL CENTRIFUGAL ASPIRATOR, MADE IN SELF-EXTINGUISHING VO RESIN
• MATERIAL: SELF-EXTINGUISHING PP THERMOPLASTIC RESIN, RATED V0.
• NOMINAL DIAMETER 150 MM.
• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:
• AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,
• BACKWARD CURVED IMPELLER.
• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.
• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.
CA 150-VO D 16028
ABSORBED POWER 1ST SPEED (W): 14
ABSORBED POWER MAX (W): 52
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,22
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0.14
NOMINAL DIAMETER (MM): 150
Ø DISCHARGE HOLE (MM): 147
VOLTAGE (V): 220-240
WEIGHT (KG): 2,6
DELIVERY 1ST SPEED (L/S): 41
DELIVERY 1ST SPEED (M³/H): 150
MAX DELIVERY AT MAX SPEED (L/S): 128
MAX DELIVERY AT MAX SPEED (M³/H): 460
PRESSURE - 1ST SPEED (MMH20): 8,4
PRESSURE - 1ST SPEED (PA): 83
PRESSURE MAX - MAX SPEED (MMH20): 31,8
PRESSURE MAX - MAX SPEED (PA): 312
RPM MAX: 2400
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 56
SIZE A (MM)300
SIZE B (MM)305
SIZE C (MM)300
SIZE D (MM)147/157
SIZE E (MM)30/60
SIZE F (MM)30/60
