vortice centrifugal aspirator ca vo and ca 200 vo and 16038 (ex 16045)

SKU: 16038

£415.63VAT INCLUDED

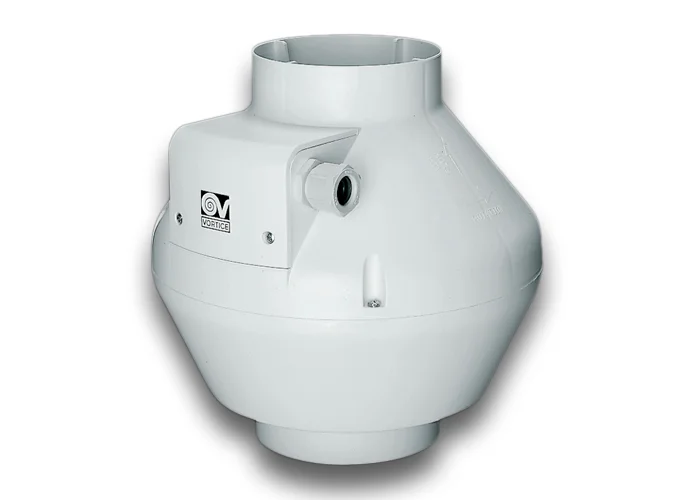

VORTICE - 16038 AXIAL CENTRIFUGAL ASPIRATOR, MADE IN SELF-EXTINGUISHING VO RESIN

• MATERIAL: SELF-EXTINGUISHING PP THERMOPLASTIC RESIN, RATED V0.
• NOMINAL DIAMETER 200 MM.
• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:
• AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,
• BACKWARD CURVED IMPELLER.
• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.
• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.

CA 200-VO E    16038 (EX 16045)

ABSORBED CURRENT MAX (A): 0,40
ABSORBED POWER 1ST SPEED (W): 39
ABSORBED POWER MAX (W): 90
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP:44
MAX ABSORBED POWER AT 60HZ (W):120
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0.35
NOMINAL DIAMETER (MM): 200
VOLTAGE (V): 220-240
WEIGHT (KG): 3,5
DELIVERY 1ST SPEED (L/S): 107.5
DELIVERY 1ST SPEED (M³/H): 387.1
MAX DELIVERY AT MAX SPEED (L/S): 215.3
MAX DELIVERY AT MAX SPEED (M³/H): 775
PRESSURE - 1ST SPEED (MMH20): 24.6
PRESSURE - 1ST SPEED (PA): 241.2
PRESSURE MAX - MAX SPEED (MMH20): 42.2
PRESSURE MAX - MAX SPEED (PA): 413.9
RPM MAX: 2611
RPM MIN: 1320
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 50.3


SIZE A (MM): 340
SIZE B (MM): 280
SIZE C (MM): 340
SIZE D (MM): 197
SIZE E (MM): 40
SIZE F (MM): 30
SIZE G (MM): 390

  • Brand: VORTICE
