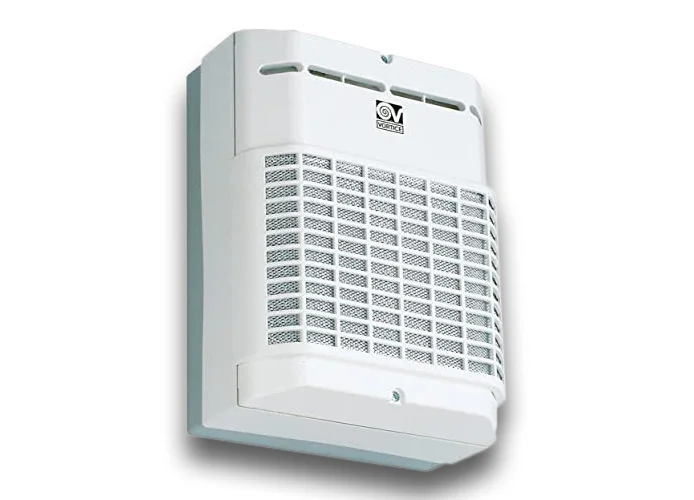

VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, VORT MAX S 11970
- POLYSTYRENE CONSTRUCTION (PS).
- NOMINAL DIAMETER 100 MM.
- HIGH EFFICIENCY ELECTRONIC COMMUTATION MOTOR (EC), COMBINED WITH A CENTRIFUGAL IMPELLER, WHICH GUARANTEES A WIDE RANGE OF ADJUSTMENTS AND A SIGNIFICANT REDUCTION IN CONSUMPTION, WITH THE SAME PERFORMANCE.
- PROTECTION GRILLE AND FILTER IN MULTILAYER ALUMINUM MESH IN FRONT OF THE PRODUCT, EASILY REMOVABLE AND WASHABLE.
- BUTTERFLY CLOSURE TO AVOID AIR RE-ENTRY WHEN THE APPLIANCE IS SWITCHED OFF.
- SATURATED FILTER SIGNALLING DEVICE.
- EQUIPPED WITH A 120 MM DIAMETER PIPE OUTLET CONNECTION.
- SPEED CONTROLLABLE BY VORTEX REGULATOR.
VORT MAX S 11970
MAX. RATED CURRENT (A): 0.80
NOMINAL CONDUIT DIAMETER (MM): 100/120
FREQUENCY (HZ): 50
PROTECTION DEGREE: IPX0
INSULATION: I° CLASS
OUTLET Ø (MM): 100/120
WEIGHT (KG): 3
MAX POWER CONSUMPTION AT MAX VEL. (W): 80
TEMP. ENVIRONMENT MAX. CONTINUOUS OPERATION (°C): 40
VOLTAGE (V): 220-240
MAX CAPACITY AT MAX VEL. (L/S): 132
MAX CAPACITY AT MAX VEL. (M³/H): 475
MAX PRESSURE TO MAX VEL. (MMH2O): 78
MAX PRESSURE TO MAX VEL. (PA): 765
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX VEL.: 46
RPM MAX: 3250
SIZE A (MM): 406
SIZE B (MM): 305
SIZE C (MM): 149
SIZE D (MM): Ø100/Ø120
SIZE E (MM): 25
SIZE F (MM): 75 complementary accessories:
- Electronic speed controller VORTEX 12966
- Built-in speed controller VORTICE 12971
