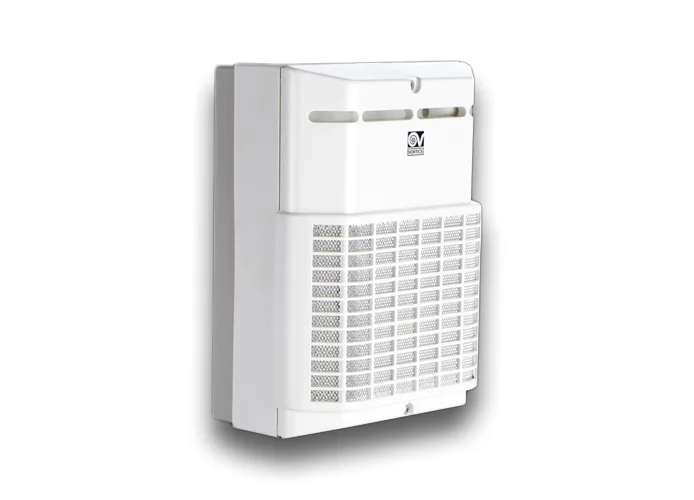

VORTICE - CENTRIFUGAL ASPIRATOR FOR WALL, IDEAL FOR CONTINUOUS VENTILATION, (THANKS TO THE PROTECTION GRID AND TO THE ALUMINIUM MESH FILTER) OF WORKING PLACES AND, IN GENERAL, OF RESIDENTIAL AND COMMERCIAL PLACES OF SMALL AND MEDIUM DIMENSIONS, WHOSE PLAN REQUIRES THE DISCHARGE CHANNELING
- POLYSTYRENE CONSTRUCTION (PS).
- NOMINAL DIAMETER 100 MM.
- CAPACITOR MOTOR, EQUIPPED WITH THERMAL PROTECTOR.
- MAXIMUM CAPACITY 90 M3/H.
- PROTECTION GRID AND MULTILAYER ALUMINIUM MESH FILTER IN THE FRONT OF THE PRODUCT, EASILY REMOVABLE AND WASHABLE.
- THROTTLE CLOSURE TO AVOID AIR RE-ENTRY WHEN THE APPLIANCE IS SWITCHED OFF.
- SPEED CONTROLLABLE BY VORTEX REGULATOR.
- SAFETY AND PERFORMANCE CERTIFIED IMQ AND IMQ PERFORMANCE.
VORT MICRO S 11900
MAX. CURRENT CONSUMPTION (A): 0.10
NOMINAL DUCT DIAMETER (MM): 100
FREQUENCY (HZ): 50
INSULATION: 2ND CLASS
Ø EXHAUST (MM): 97
WEIGHT (KG): 1.25
MAX. POWER CONSUMPTION (W): 20
VOLTAGE (V): 220-240
MAX FLOW RATE (L/S): 25
MAX FLOW RATE (M³/H): 90
MAX PRESSURE (MMH2O): 11.5
MAX PRESSURE (PA): 113
SOUND PRESSURE LP [DB (A)] 3M: 47
RPM: 1790
SIZE A (MM): 260SIZE B (MM): 185SIZE C (MM): 117SIZE D (MM): Ø 97SIZE E (MM): 25SIZE F (MM): 65
