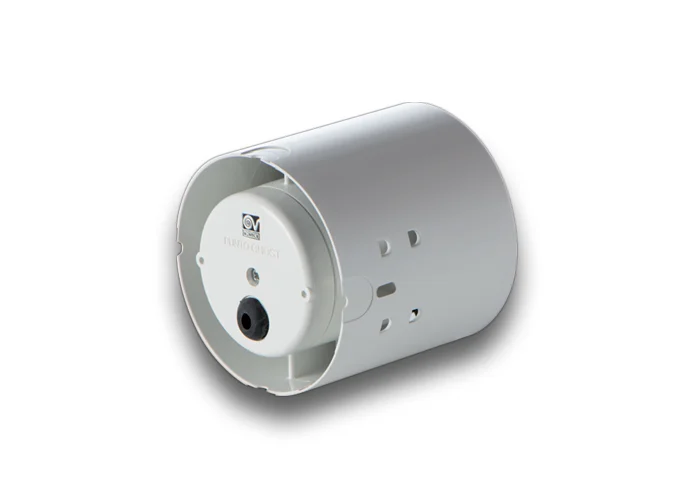

VORTICE - WALL HELICAL ASPIRATOR, PUNTO GHOST SERIES
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 150 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 320 M3/H.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLERS.
PUNTO GHOST Serie MG 150/6" 11117
ABSORBED CURRENT MAX (A): 0,18
ABSORBED POWER MAX (W): 30
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 160
VOLTAGE (V): 220-240
WEIGHT (KG): 0,80
DELIVERY MAX (L/S): 89
DELIVERY MAX (M³/H): 320
PRESSURE MAX (MMH2O): 7
PRESSURE MAX (PA): 69
RPM: 2200
SOUND POWER LEVEL LW [DB(A)]: 48
SIZE A (MM): Ø 155
SIZE B (MM): 110
SIZE C (MM): 107
