vortice helical aspirator punto mf 90/3,5" timer 11126

SKU: 11126

£116.59VAT INCLUDED

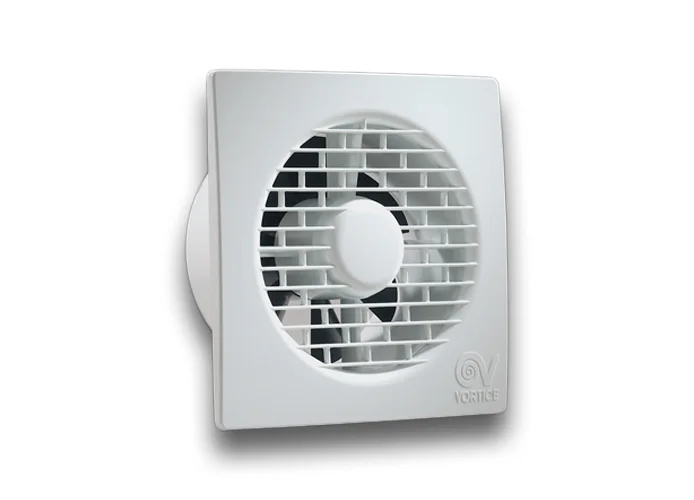

VORTICE - WALL HELICAL ASPIRATOR, PUNTO FILO SERIES

• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 90 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 65 M3/H.
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• NON-RETURN DAMPER FITTED TO OUTLET PORT.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
• VORTICE SPEED CONTROLLER.

PUNTO FILO MF 90/3,5" TIMER  11126

ABSORBED CURRENT MAX (A)0,08
ABSORBED POWER MAX (W)
15
FREQUENCY (HZ)
50
INSULATION CLASS
II°
IP
X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C)
50
NOMINAL DIAMETER (MM)
90
Ø DISCHARGE HOLE (MM)
92,5
VOLTAGE (V)
220-240
WEIGHT (KG)
0,50
DELIVERY MAX (L/S)
18
DELIVERY MAX (M³/H)
65
GIRI_MINUTO
2500
PRESSURE MAX (MMH2O)
2,5
PRESSURE MAX (PA)
25
RPM
2500
SOUND PRESSURE LEVEL LP [DB (A)] 3M
28,8

SIZE A (MM): 159
SIZE B (MM): 17
SIZE C (MM): 77
SIZE D (MM): 92,5

  • Brand: VORTICE
