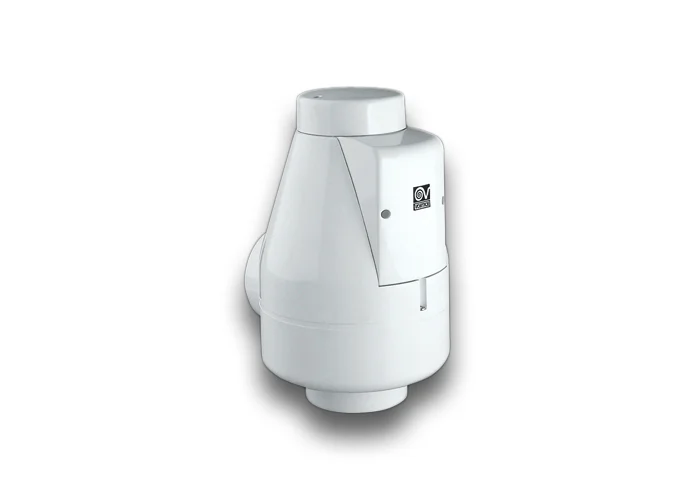

VORTICE - INLINE CENTRIFUGAL ASPIRATOR FOR VENTILATION
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER: 100 MM
• 2 SPEED MOTOR WITH THERMAL OVERLOAD PROTECTION AND SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO A CENTRIFUGAL IMPELLER.
• MINIMUM AIR FLOW 86 M3/H
• MAXIMUM AIR FLOW: 140 M3/H
• PROTECTIVE GRILLE ON INLET PORT
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLER.
ANGOL serie K 10204
ABSORBED CURRENT MAX (A)0,16
ABSORBED POWER 1ST SPEED (W)29
ABSORBED POWER MAX (W)35
FREQUENCY (HZ)50
INSULATION CLASSII°
IPX2
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C)40
MAX. ABSORBED CURRENT AT MIN. SPEED (A)0,12
NOMINAL DIAMETER (MM)100
Ø DISCHARGE HOLE (MM)97
VOLTAGE (V)220-240
WEIGHT (KG)1,27
DELIVERY 1ST SPEED (L/S)23,9
DELIVERY 1ST SPEED (M³/H)86
MAX DELIVERY AT MAX SPEED (L/S)38,9
MAX DELIVERY AT MAX SPEED (M³/H)140
PRESSURE - 1ST SPEED (MMH20)13,5
PRESSURE - 1ST SPEED (PA)132
PRESSURE MAX - MAX SPEED (MMH20)17
PRESSURE MAX - MAX SPEED (PA)157
RPM MAX2180
RPM MIN1410
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED43
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED
