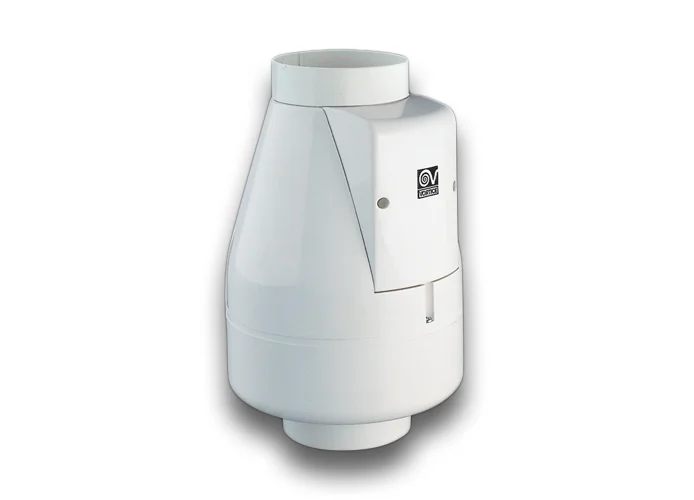

VORTICE - INLINE CENTRIFUGAL ASPIRATOR FOR VENTILATION
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER: 100 MM
• 1 SPEED MOTOR WITH THERMAL OVERLOAD PROTECTION AND SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO A CENTRIFUGAL IMPELLER.
• MAXIMUM AIR FLOW 135 M3/H
• PROTECTIVE GRILLE ON INLET PORT
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLER.
AXIAL K serie 10904
ABSORBED CURRENT MAX (A) 0,13
ABSORBED POWER MAX (W) 27
FREQUENCY (HZ) 50
INSULATION CLASS II°
IP X2
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C) 40
NOMINAL DIAMETER (MM) 100
VOLTAGE (V) 220-240
WEIGHT (KG) 1,2
DELIVERY MAX (L/S) 37,5
DELIVERY MAX (M³/H) 135
PRESSURE MAX (MMH2O) 17
PRESSURE MAX (PA) 167
RPM 2560
SOUND PRESSURE LEVEL LP [DB (A)] 3M 41
SIZE A (MM) 168
SIZE B (MM) Ø 176
SIZE D (MM) Ø 97
SIZE F (MM) 270
