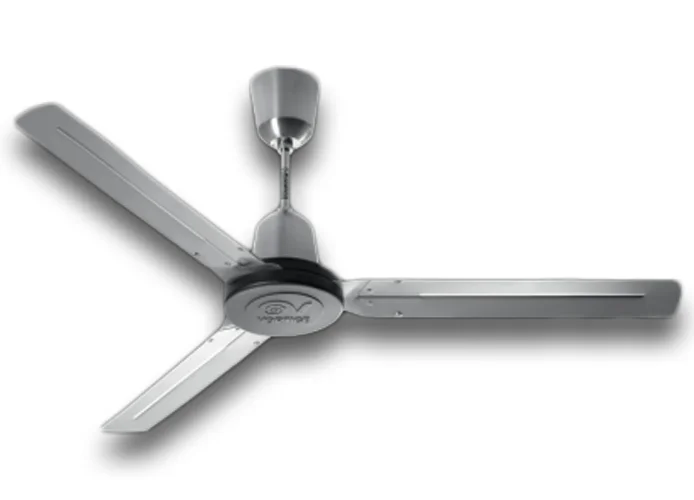

VORTICE - NORDIK HEAVY DUTY CEILING FAN WITH 120 DIAMETER, INOX
• DIE-CASTED EPOXY PAINTED MOTOR COVERS, COLOUR BLACK, SEALED WITH EPDM GASKETS TO PREVENT DUST OR WATER ENTRY.
• CUPS MADE OF AISI 304 STAINLESS STEEL .
• NOMINAL DIAMETER OF BLADES 1200 MM.
• SINGLE-PHASE EXTERNAL ROTOR MOTOR, SHAFT MOUNTED ON BALL BEARINGS.
• 3 BLADES MADE OF AISI 304 STAINLESS STEEL.
• 4 HOLE SUPPORT PLATE COMPATIBLE WITH DIFFERENT TYPES OF CEILINGS, EVEN HIGHLY SLANTED.
• LIFELINE TO PREVENT ANY RISK OF FALLING IN CASE OF UNCORRECT INSTALLATION OF THE PRODUCT.
• POSSIBILITY OF AUTOMATIC ADJUSTMENT OF UP TO 16 FANS SIMULTANEOUSLY, IN RELATION TO THE DIFFERENTIAL MEASURED BY TWO TEMPERATURE SENSORS (VORT DELTA T OPTIONAL).
• NUTS AND BOLTS, CEILING HOOK AND RUBBER MADE DAMPER SUPPLIED WITH THE PRODUCT.
• ADJUSTABLE SPEED CONTROL THROUGH AUTO-TRANSFORMER OR MULTIPLE ELECTRONIC DEVICES ALLOWED (OPTIONALS)
NORDIK HEAVY DUTY 120 EDELSTAHL 61024
ABSORBED CURRENT MAX (A): 0,35
BLADES DIAMETER:1218
FREQUENCY (HZ): 50
INSULATION CLASS: I°
IP: 55
MOTOR POWER (W): 80
VOLTAGE (V): 230
WEIGHT (KG): 7,3
AIRFLOW SPEED AT MAX SPEED (M/S): 2,40
DELIVERY MAX (M³/H): 14050
DELIVERY MAX (M³/MIN): 234
RPM: 233
SERVICE VALUE (M³/MIN)/W: 2,925
SOUND POWER LEVEL LW [DB(A)]: 51,8
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 34,32
SIZE A (MM): Ø 1218
SIZE B (MM): Ø 230
SIZE C (MM): 495
