vortice punto evo me helical aspirator 120/5" ll t pir timer 11273

SKU: 11273

£237.63VAT INCLUDED

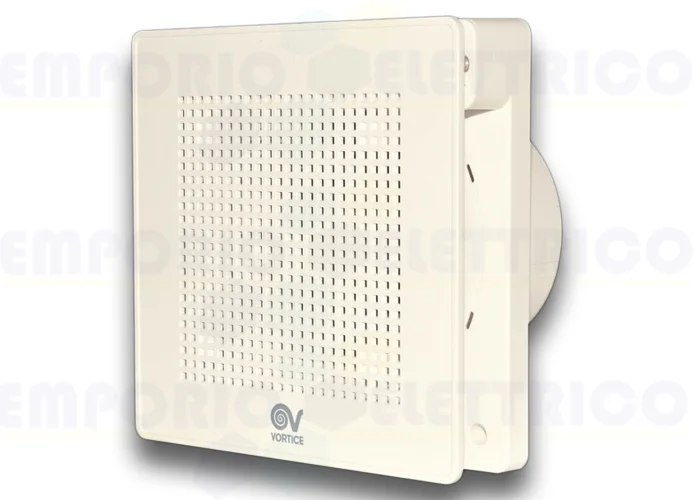

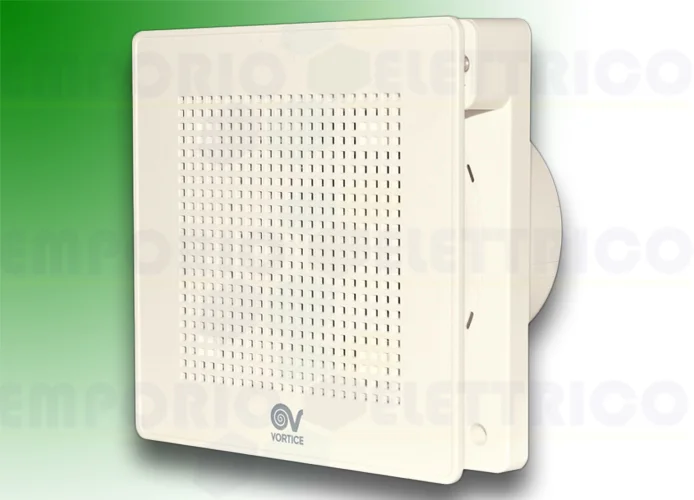

VORTICE - WALL HELICAL ASPIRATOR, PUNTO EVO SERIES

WITH TIMER AND PIR HUMIDITY CONTROL SYSTEM

• MATERIAL: UV RESISTANT WHITE PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 120 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS; 2 OPERATING SPEEDS CONTROLLED ELECTRONICALLY FROM PCB.
• AIR FLOW BETWEEN 120 M3/H AND 175 M3/H.
• VERSION WITH SIMPLIFIED TIMER, OPERATING AT ONE SPEED MIN OR MAX, AND PIR PRESENCE DETECTOR: THE APPLIANCE IS EQUIPPED WITH A PCB INCORPORATING A PIR SENSOR THAT WILL ACTIVATE THE FAN AUTOMATICALLY ON DETECTING A PRESENCE IN THE ROOM; THE PCB ALSO PROVIDES A DELAYED SWITCH-OFF FUNCTION. THE LENGTH OF THE SWITCH-OFF DELAY, AS WELL AS THE ONLY OPERATING SPEED, VMIN OR VMAX, CAN BE SET DURING INSTALLATION.
• EQUIPPED WITH NON-RETURN DAMPER PREVENTING UNWANTED BACKDRAUGHT WHEN THE FAN IS OFF.
• IMQ SAFETY CERTIFICATION.

PUNTO EVO Serie ME 120/5" LL T PIR TIMER  11273

ABSORBED POWER 1ST SPEED (W)10
FREQUENCY (HZ)
50
INSULATION CLASS
II°
IP
45
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C)
50
MAX. ABSORBED CURRENT AT MAX. SPEED (A)
0,080
MAX. ABSORBED CURRENT AT MIN. SPEED (A)
0,060
MAX. ABSORBED POWER AT MAX SPEED (W)
13
NOMINAL DIAMETER (MM)
120
VOLTAGE (V)
220-240
WEIGHT (KG)
0,77
DELIVERY 1ST SPEED (L/S)
33,3
DELIVERY 1ST SPEED (M³/H)
120
MAX DELIVERY AT MAX SPEED (L/S)
48,6
MAX DELIVERY AT MAX SPEED (M³/H)
175
PRESSURE - 1ST SPEED (MMH20)
2,3
PRESSURE - 1ST SPEED (PA)
22,56
PRESSURE MAX - MAX SPEED (MMH20)
5
PRESSURE MAX - MAX SPEED (PA)
49,04
RPM MAX
2070
RPM MIN
1490
SOUND POWER LW [DB(A)] - MIN SPEED
44,5
SOUND POWER LW [DB(A)] - MAX SPEED
52,8
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX SPEED
32,3
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN SPEED
24,0

SIZE A (MM): 179
SIZE B (MM): 179
SIZE C (MM): 128,5
SIZE D (MM): Ø 118
SIZE E (MM): 71
SIZE F (MM): 42,5
SIZE G (MM): 152
SIZE H (MM): 152
SIZE L (MM): Ø 3,5
SIZE M (MM): 44

  • Brand: VORTICE
