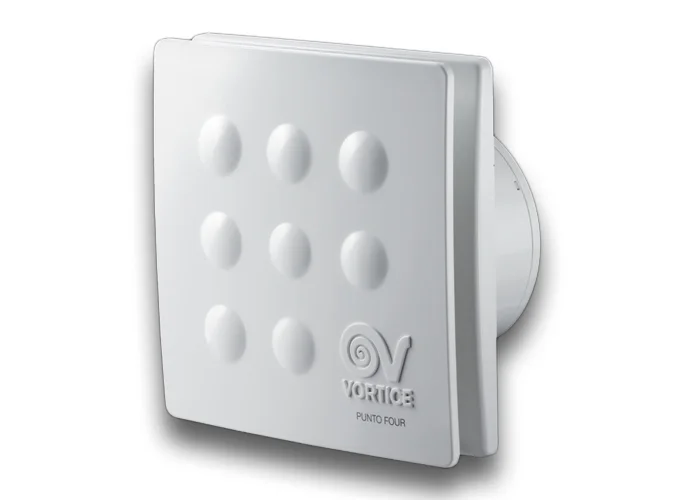

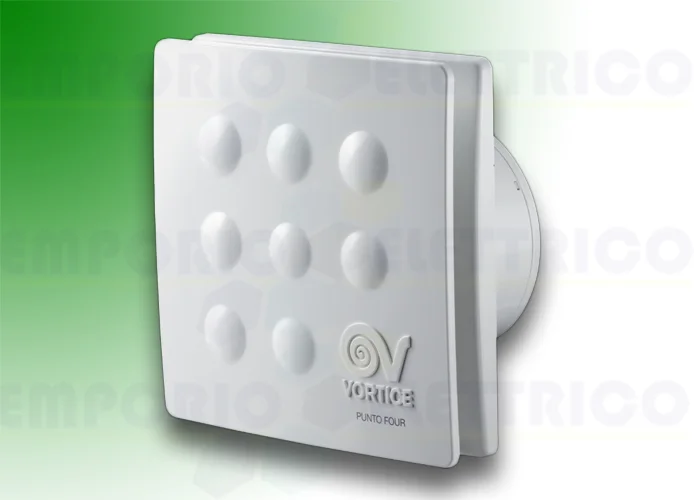

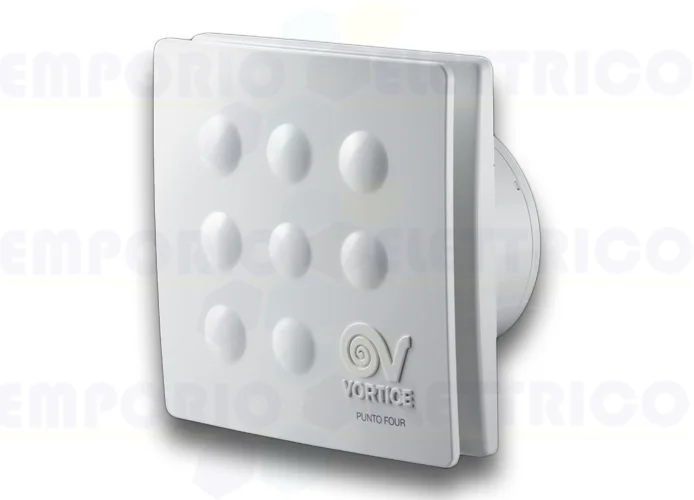

VORTICE - WALL HELICAL ASPIRATOR, PUNTO FOUR SERIES
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 85 M3/H.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLER.
PUNTO FOUR Serie MFO 100/4" 11145
ABSORBED CURRENT MAX (A): 0,09
ABSORBED POWER MAX (W): 15
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 100
VOLTAGE (V): 220-240
WEIGHT (KG): 0,555
DELIVERY MAX (L/S): 24
DELIVERY MAX (M³/H): 85
PRESSURE MAX (MMH2O): 3
PRESSURE MAX (PA): 29
RPM: 2400
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 33,1
SIZE A (MM): 158
SIZE B (MM): 37
SIZE C (MM): 97
SIZE D (MM): 98,4
