vortice punto four helical aspirator mfo 120/5" 11147

SKU: 11147

£112.14VAT INCLUDED

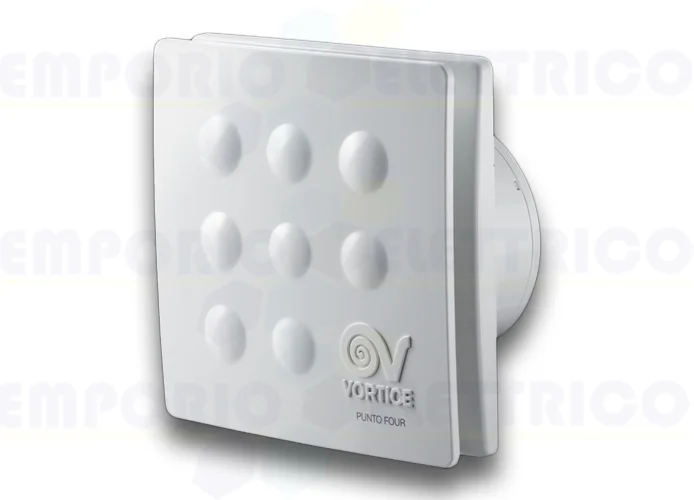

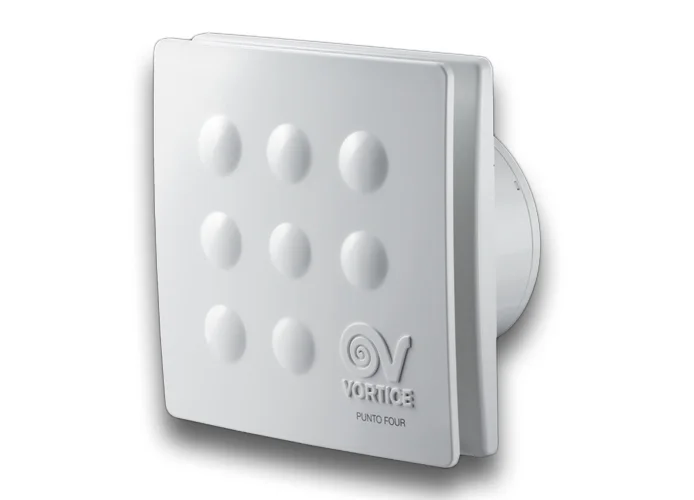

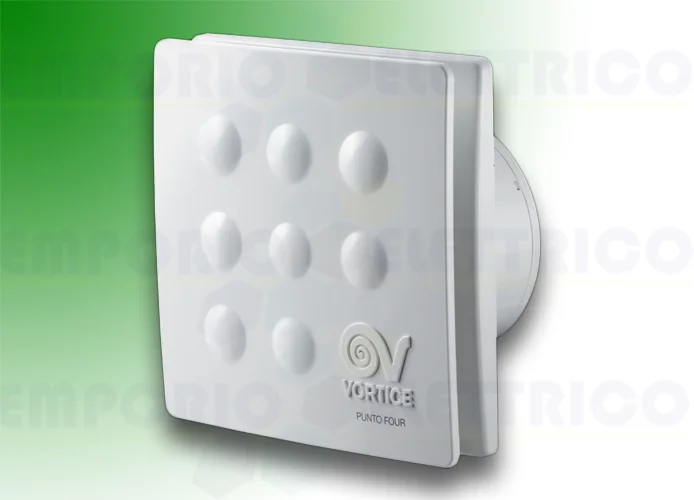

VORTICE - WALL HELICAL ASPIRATOR, PUNTO FOUR SERIES

• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 120 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 175 M3/H.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLER.

PUNTO FOUR Serie MFO 120/5"  11147

ABSORBED CURRENT MAX (A): 0,12
ABSORBED POWER MAX (W): 20
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 120
VOLTAGE (V): 220-240
WEIGHT (KG): 0,785
DELIVERY MAX (L/S): 49
DELIVERY MAX (M³/H): 175
PRESSURE MAX (MMH2O): 5
PRESSURE MAX (PA): 49
RPM: 2240
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 39,1


SIZE A (MM): 178
SIZE B (MM): 42,3
SIZE C (MM): 114
SIZE D (MM): 118,9

  • Brand: VORTICE
